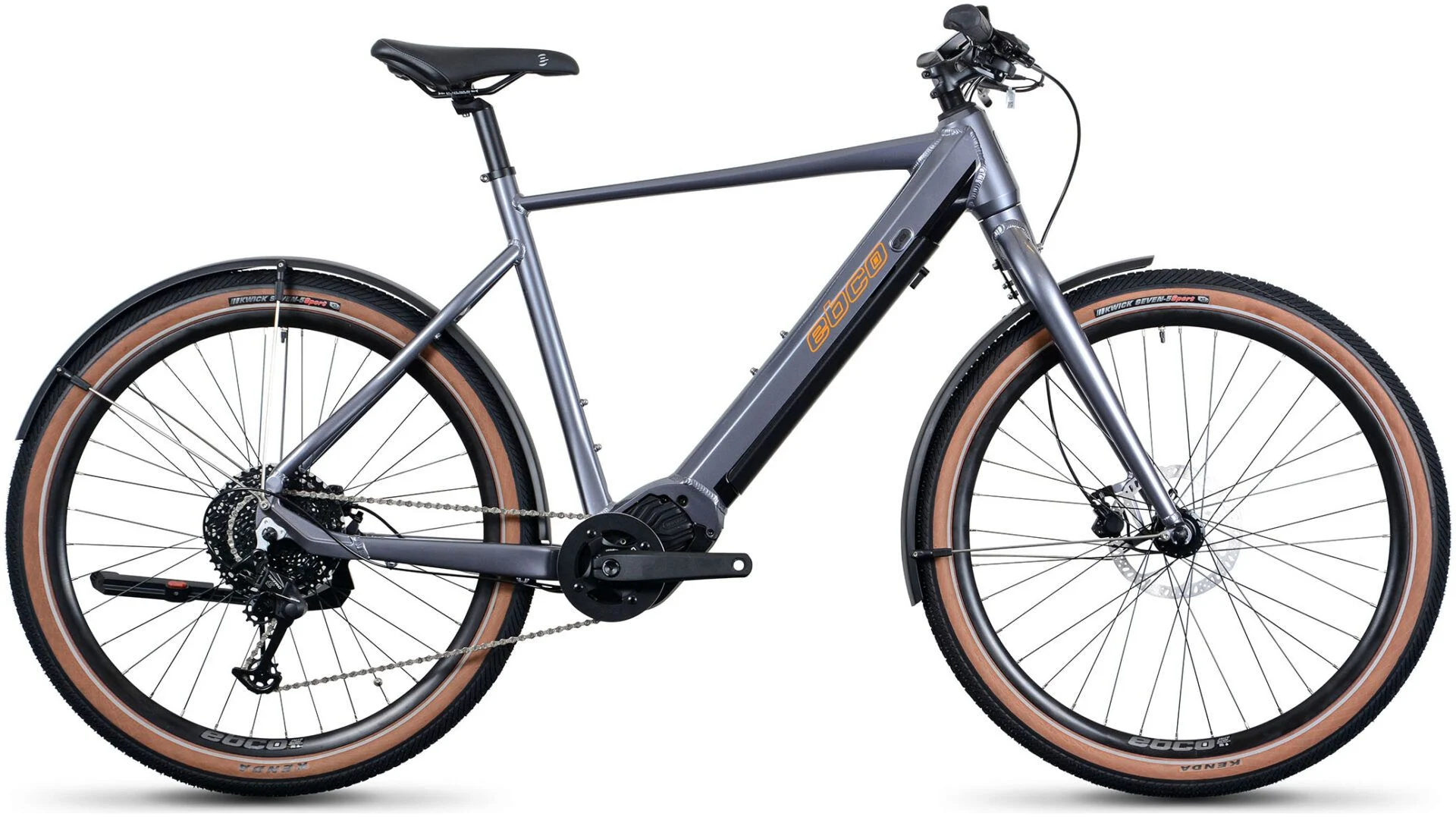

EBCO Adventure 5R Electric Bike

The Adventure 5R, featuring a roadster frame style, is upgraded to include the M510 high torque mid-motor from Bafang, weighing in at 22.5 kg.

Features

This model excels in optimizing weight distribution for exceptional handling, thanks to the integrated motor mount seamlessly blending into the frame. With wide bars, short stems, and progressive geometry, these bikes offer a dream-like riding experience. The battery, concealed in the downtube, not only enhances aesthetics but also contributes to the sleek and stylish appearance of this stunning e-bike.

Equipped with large-volume Kenda 2.20 Kranium tyres, the Adventure 5T ensures a smooth and fast ride, even on the most uneven surfaces.

At the heart of the bike lies the powerful Bafang M510 mid-motor system, delivering an impressive 95nm of torque for a powerful and smooth power assist. This motor is supported by an LG cell lithium 522wh battery, ensuring long-lasting performance. Stopping power is provided by Tektro Hydraulic Disc brakes with 180/160mm discs, while gear function is seamlessly handled by the Tektro 9-speed gear system, completing this top-of-the-range model.

Technology

Bafang Power

Utilising market-leading Bafang’s motor system, complimented with over 10 years of experience producing efficient and powerful e-Bike drivetrains. Unparalleled performance partnered with peace of mind diagnostics.

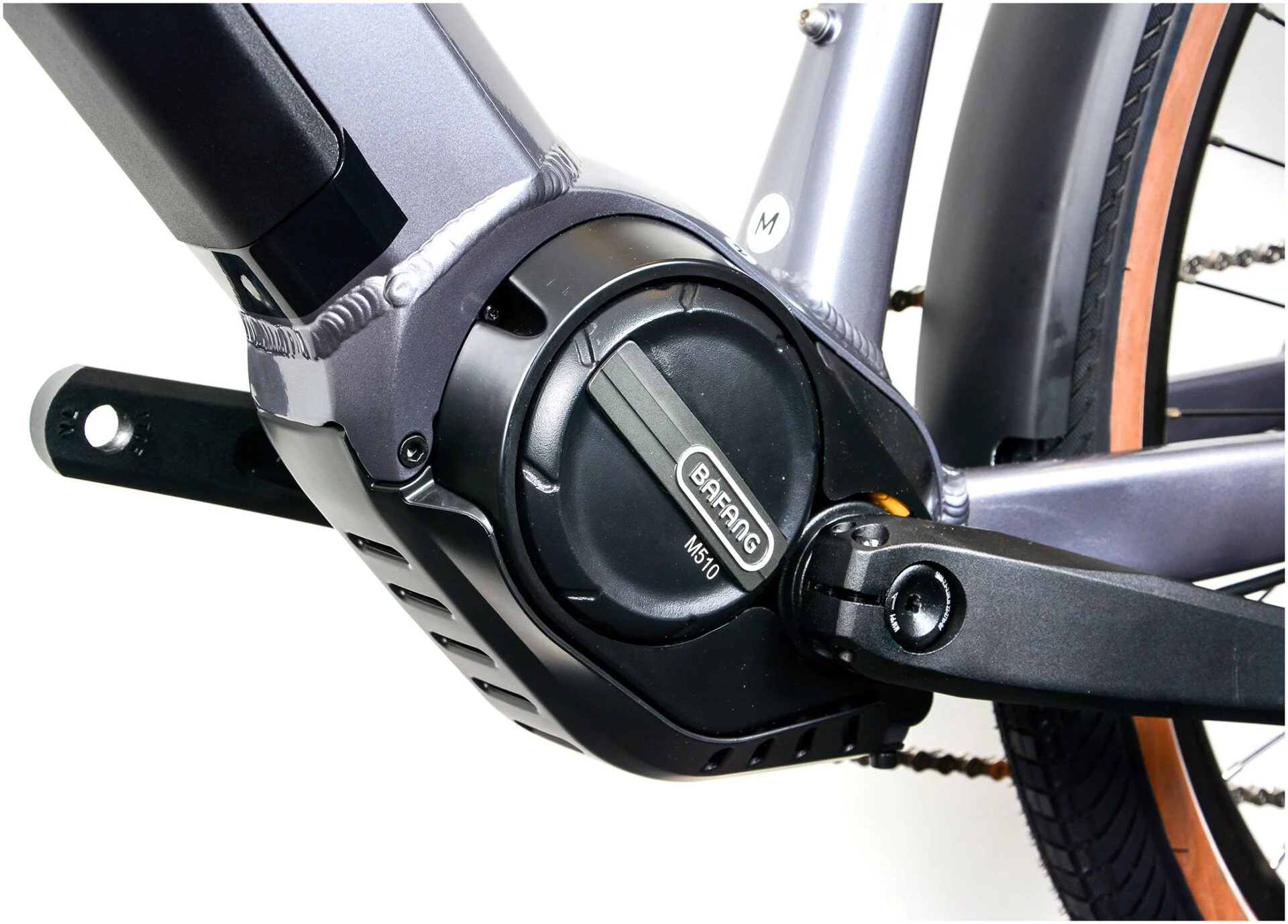

Bafang M510

The M510 mid motor was designed for Mountain Bikes. So what better to partner our Adventure series with this highly capable system.

Large Volume Tyres

Our Adventure series comes equipped with Kenda’s ultra versatile tan-wall Kranium tyres. Designed to take you anywhere with a smile on your face and uncompromised performance.

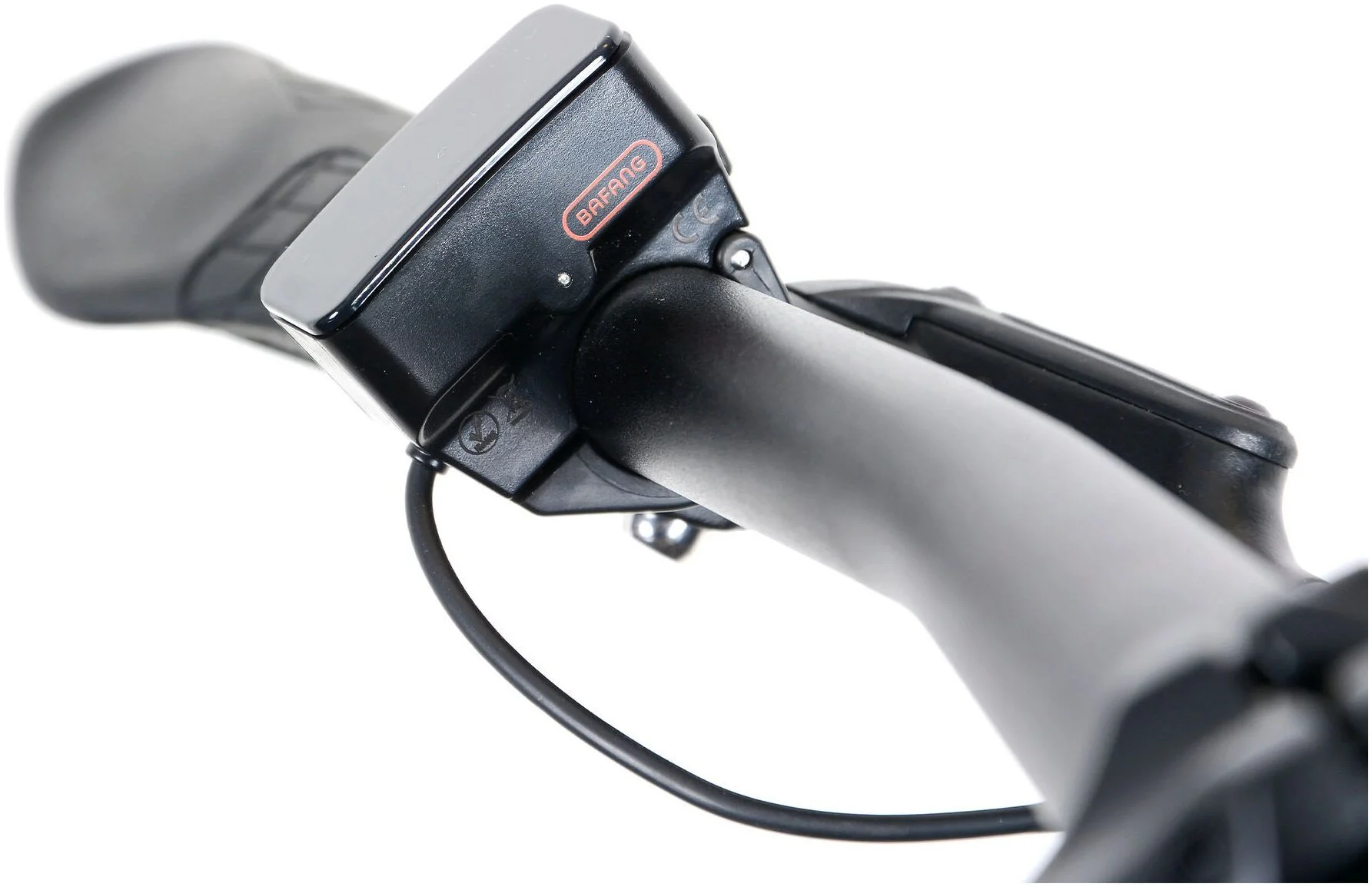

Bafang Display

All Ebco bikes are complimented with a state of the art display system to allow riders full control and visibility of their e-bike systems.

Specifications

Frame and Forks

• Frame: 6061 Alloy Roadster
• Fork: Alloy 27.5″ Rigid

Drivetrain

• Rear Derailleur: Tektro 9 Speed Clutch Mech
• Crankset: Samox 38 Tooth
• Cassette: Tektro 9 Speed 11-46 Tooth

Braking/Shifting

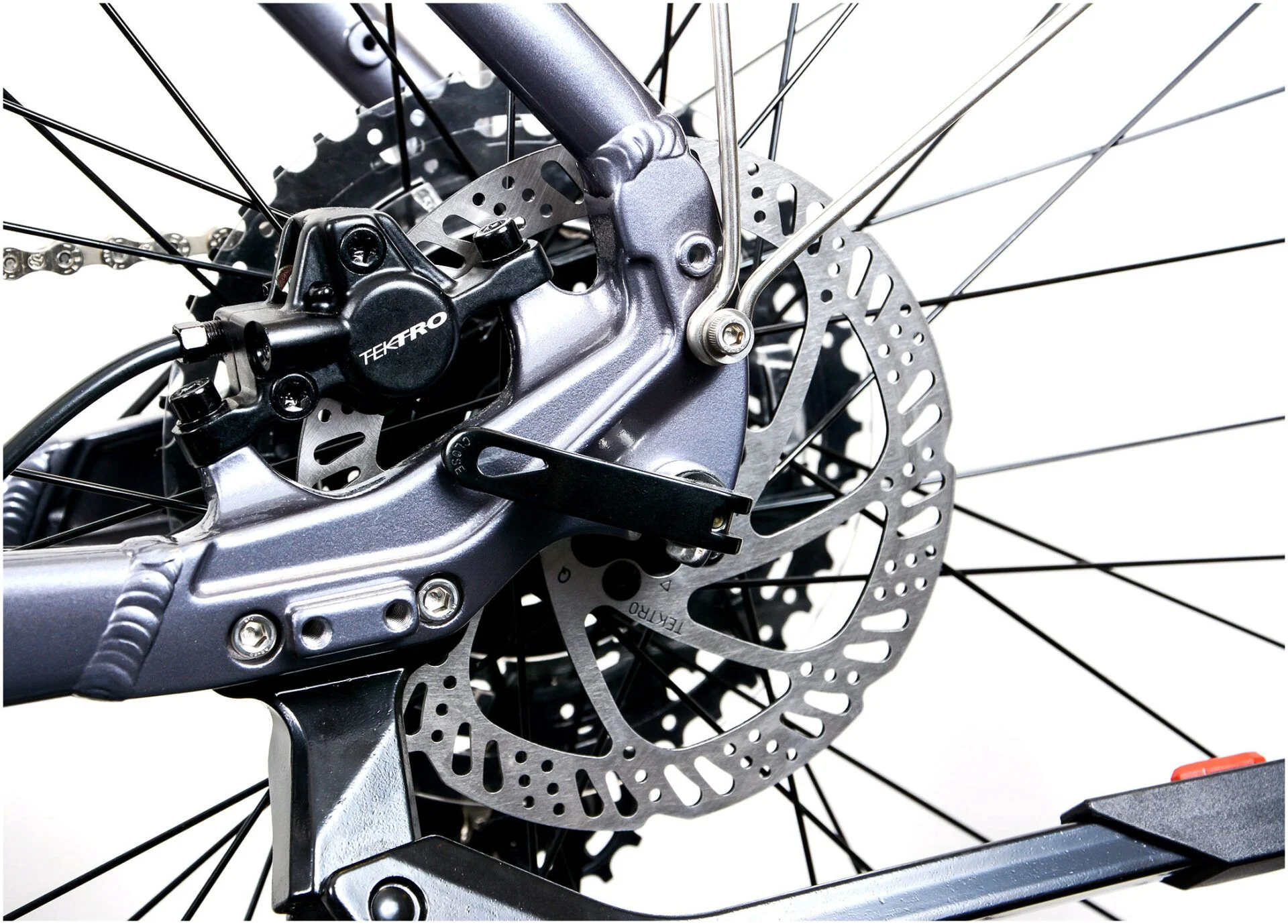

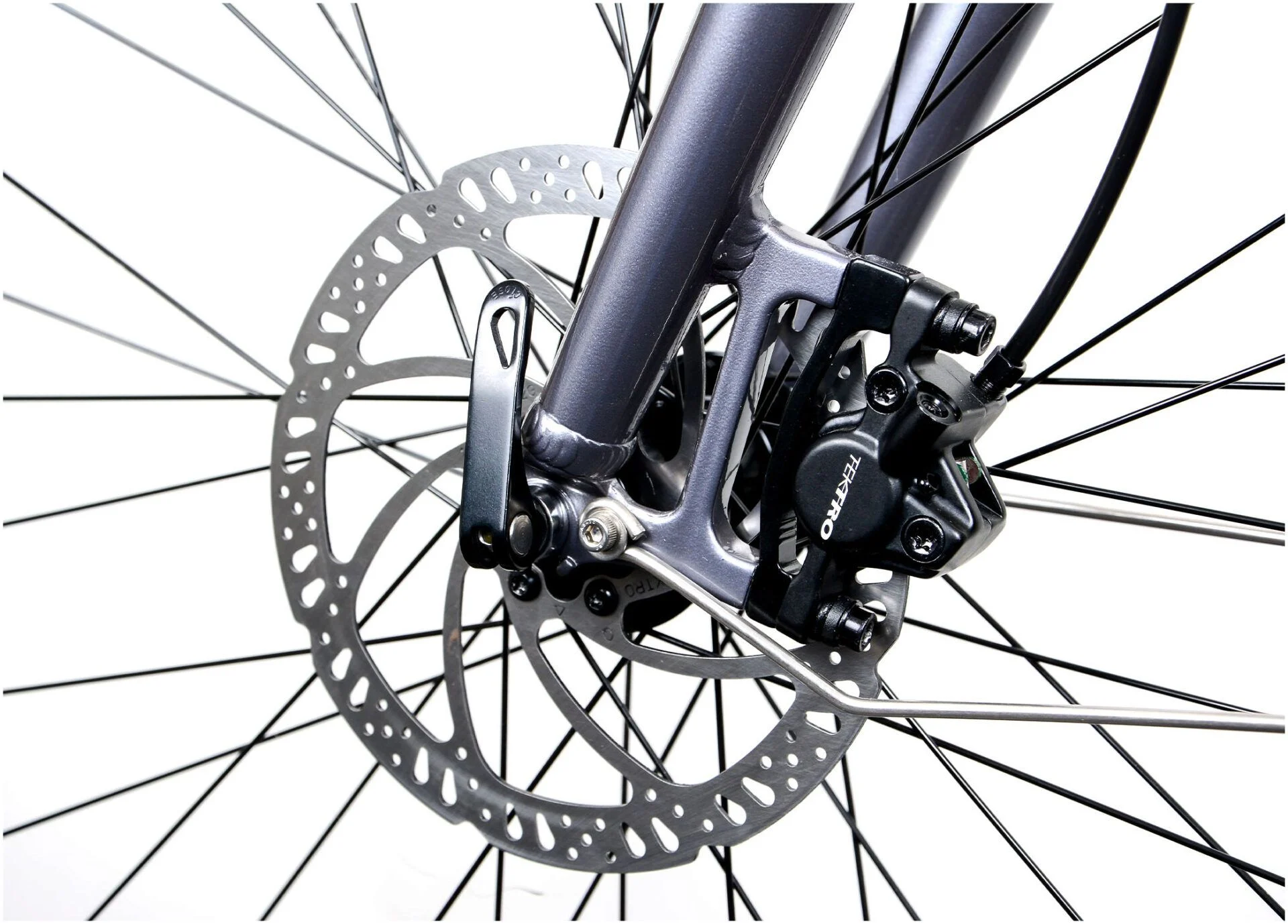

• Brakes: Tektro Hydraulic, 180mm Front Rotor, 160mm Rear Rotor
• Gear Shifters: Tektro 9 Speed M350

Wheels

• Rims: Ebco Alloy 27.5″ 36 Hole
• Tyres: Kenda Kranium 27.5 x 2.20″ Tanwall

Finishing Kit

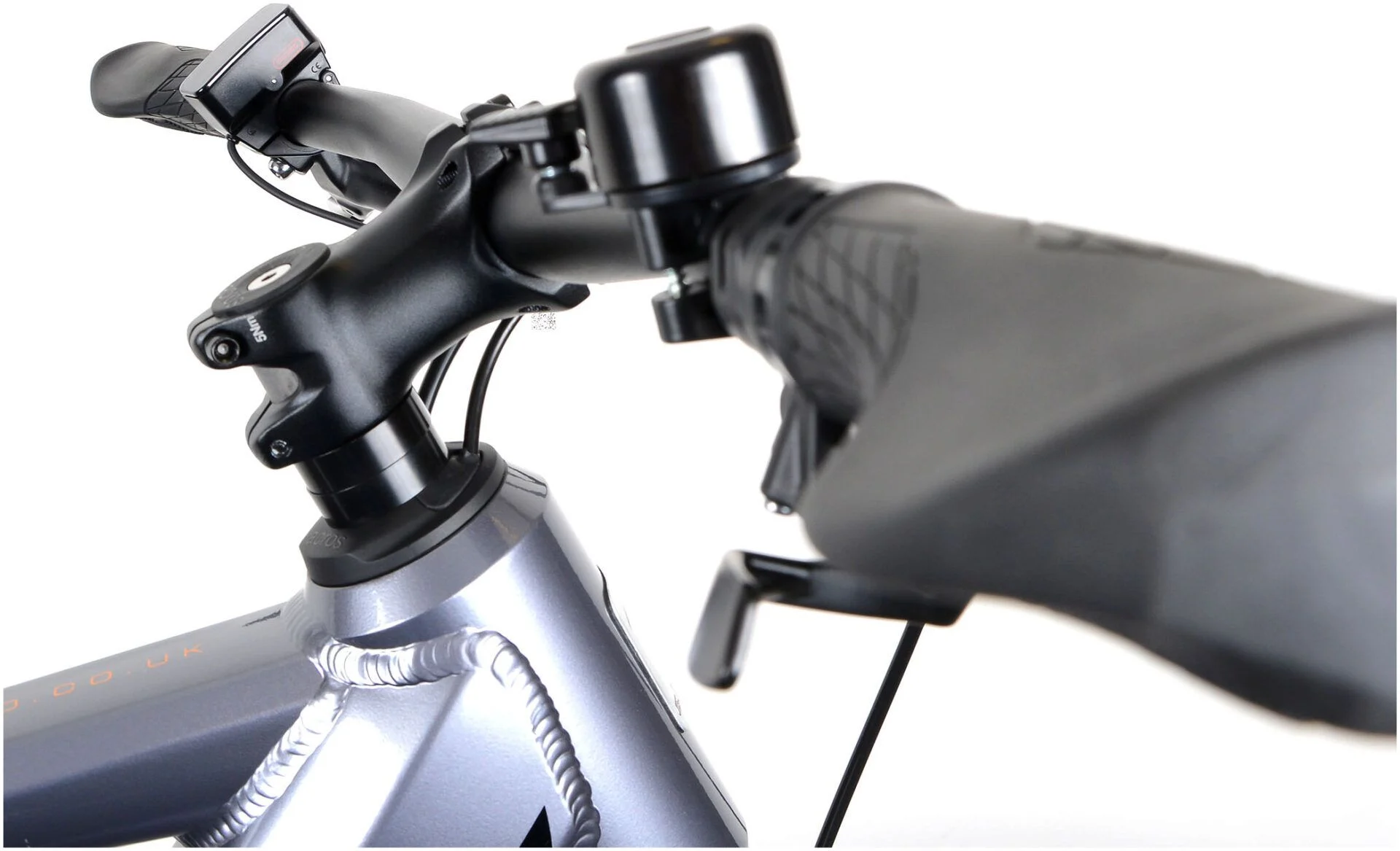

• Handlebar: Alloy 31.8 x 700mm
• Stem: Alloy 50mm

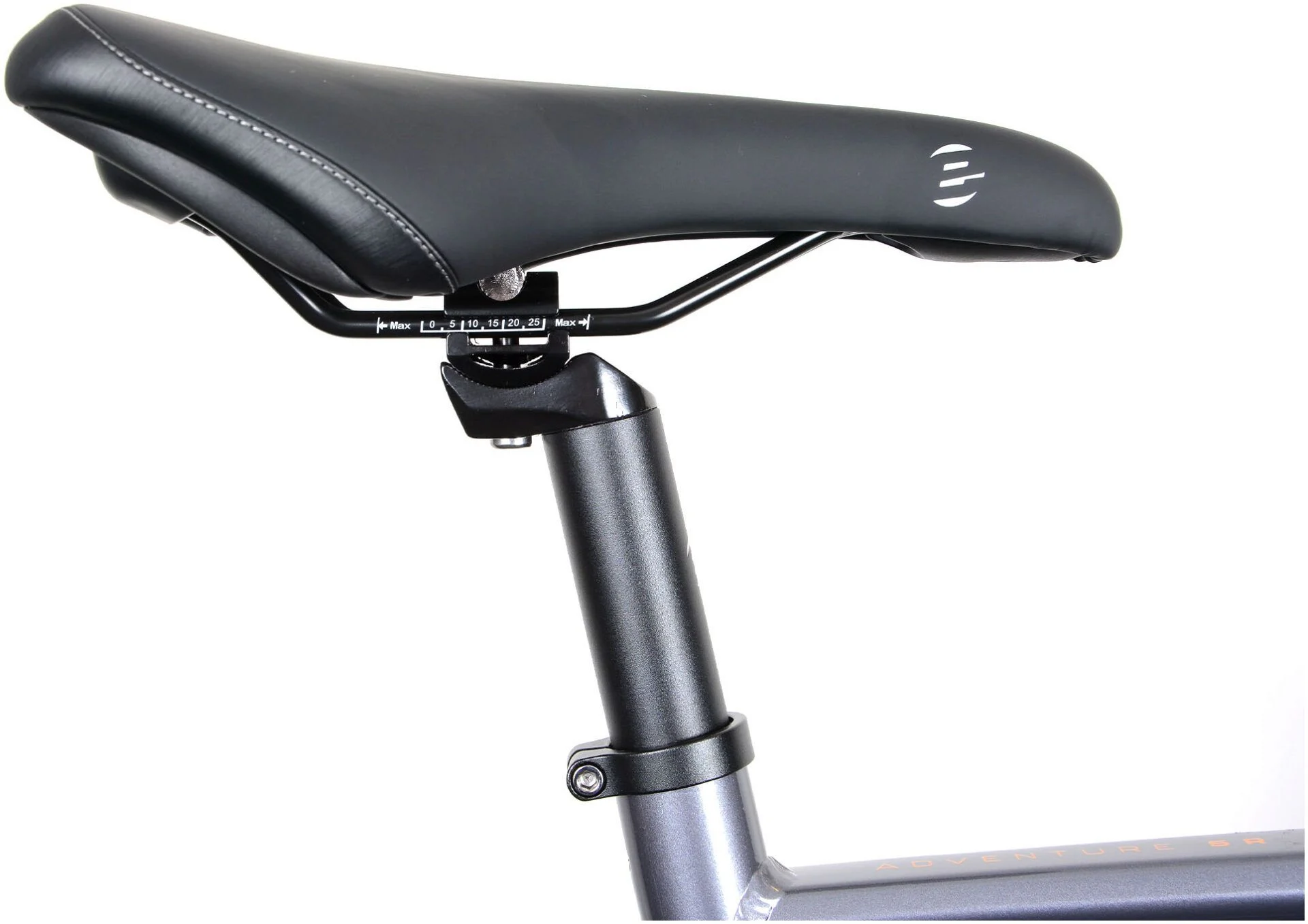

• Saddle: Ebco Sport Saddle
• Seat Post: Promax 30.9 x 300mm
• Weight: 22.5kg

Extras

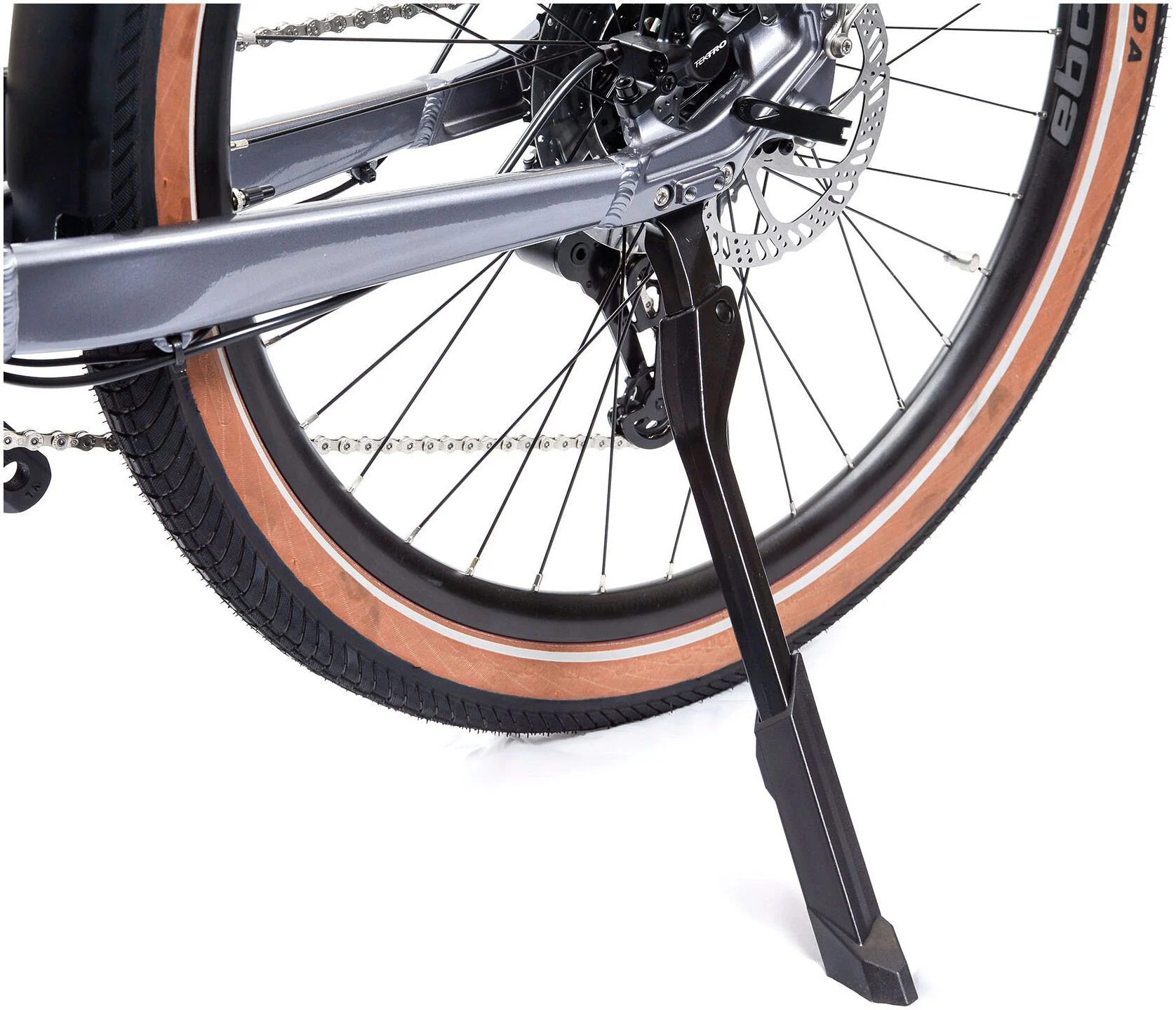

• Side Kickstand

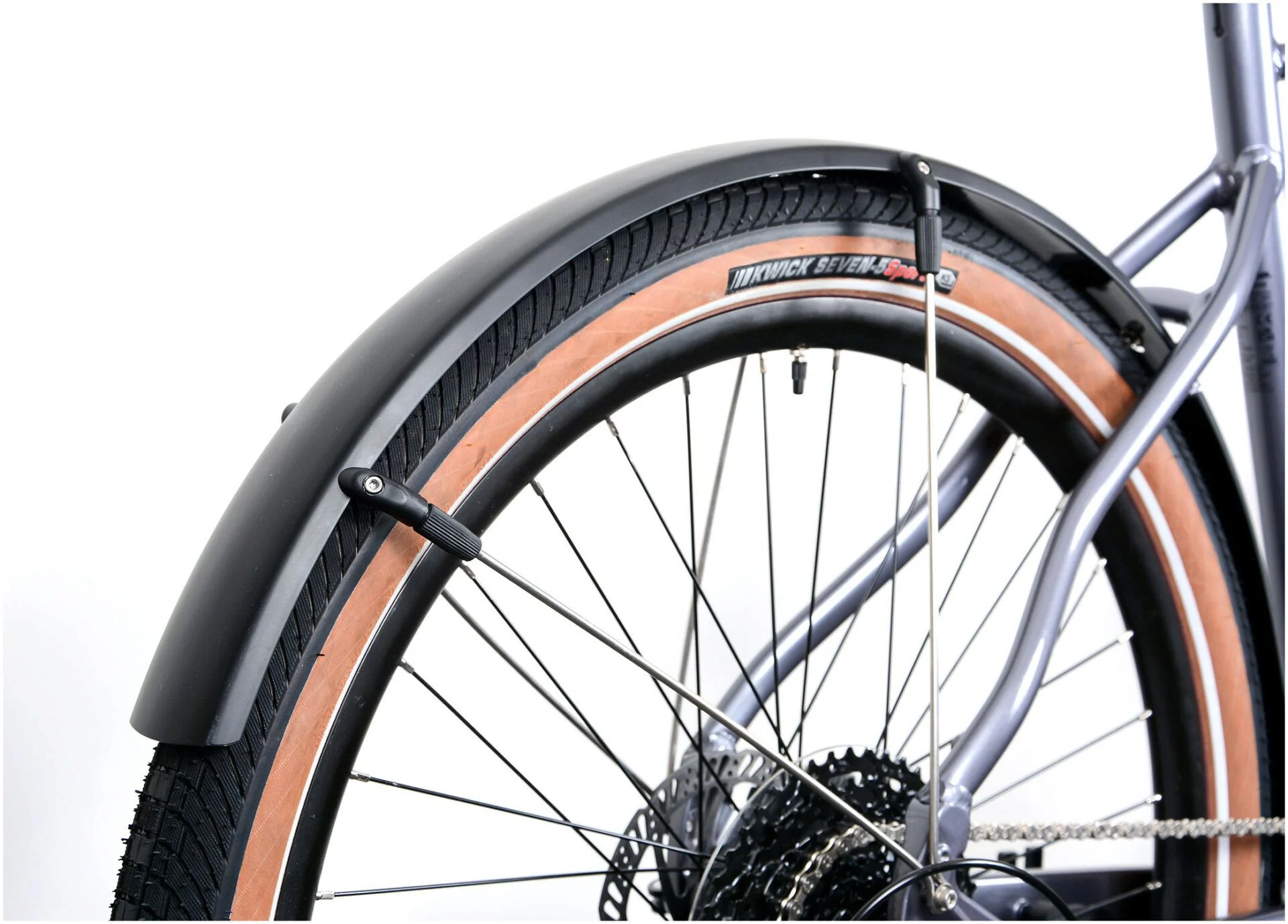

• Frame Mounted Mudguards

Electric Power

• Motor: Bafang M510 Mid Motor

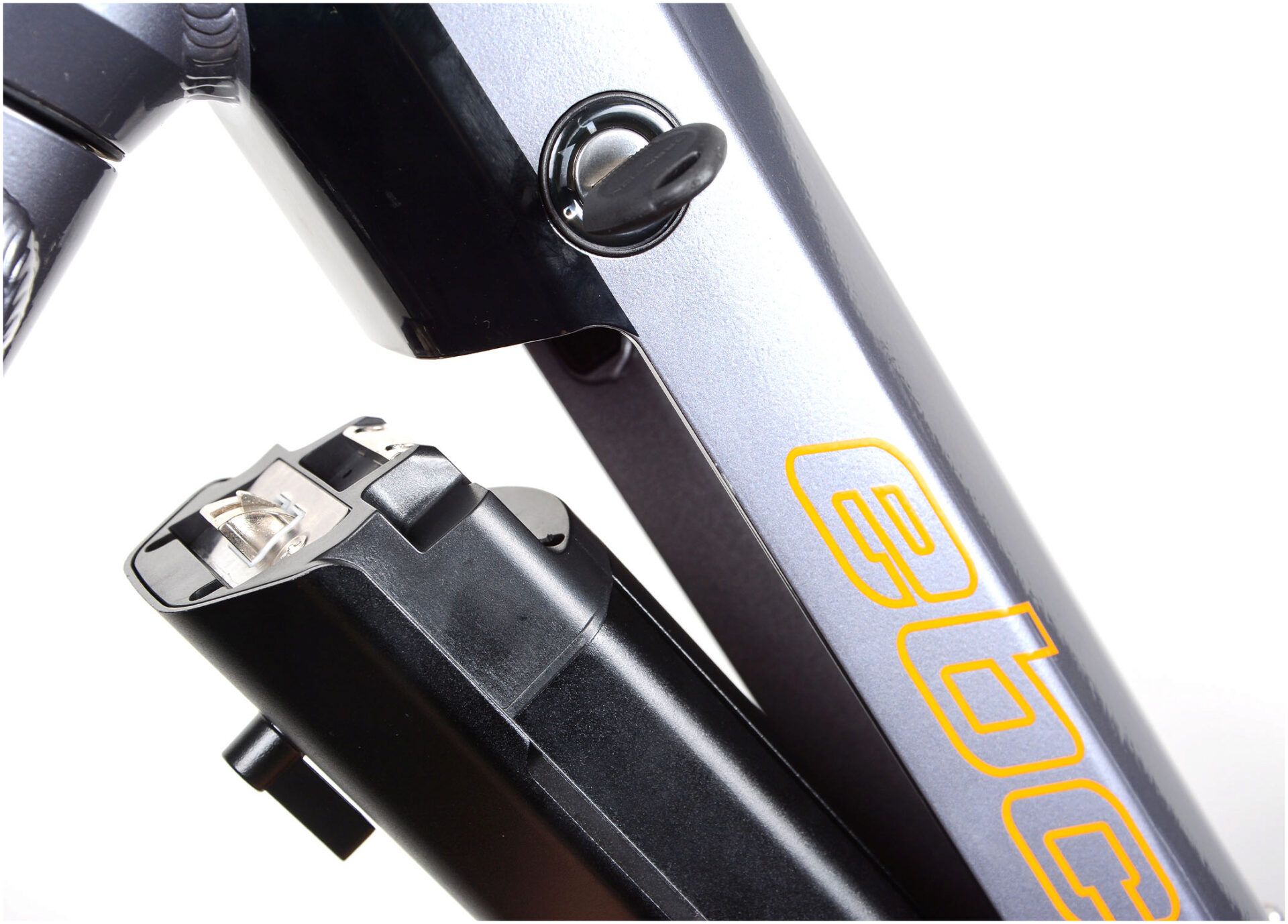

• Battery: Intube 522WH LG Cell Removable Battery
• Display: Bafang EN161
