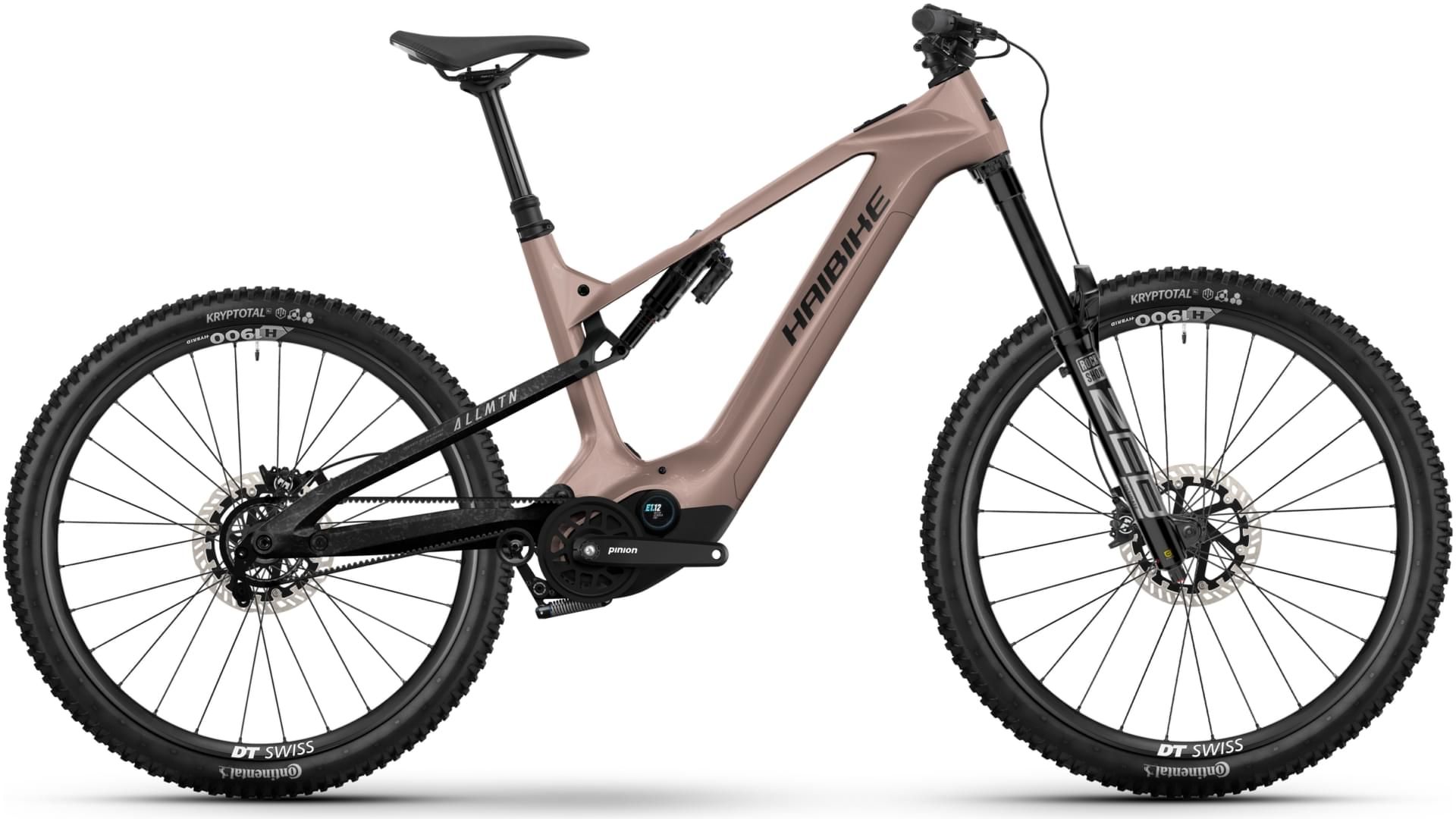

Haibike ALLMTN CF 11 TRN/IQ 2026 Electric Bike

Reach the highest peaks with ultimate riding fun. Haibike’s new ALLMTN CF 11 TRN/IQ delivers just that – and even more. This full-suspension E-MTB embodies “Next Level Riding” like no other eMountain bike in Haibike’s range. One key feature is the fully integrated Pinion Motor.Gearbox.Unit (MGU) – an advanced drive technology that combines motor and gearbox in one housing. Supported by the mullet setup, shorter chain stays and improved kinematics with 160mm of travel front and rear, you’ll enjoy an entirely new, intuitive riding experience. And with the 800Wh battery, even the longest Alpine climbs become a breeze, while the high-quality Magura disc brakes bring you safely back down to the valley. Climbing to the highest peaks has never been this fun!

Specification

Frame and Forks

• Forks: ZEB Ultimate Charger 3.1 RC2, DebonAir 160mm
• Headset: ICR Top Cup / Bottom BlockLock ZS56 / ZS56
• Rear Shock: Super Deluxe Ultimate RC2T 230 x 60mm, DebonAir

Drivetrain

• Crankset: Forge Crankset + GATES CDX Front Sprocket with Guard
• Cassette: Carbon Drive CDX Sprocket, 9 Spline
• Chain: Carbon Drive Belt CDX, 120 T

Braking/Shifting

• Rear Shifter: Smart Shift TE1 E-Trigger
• Front Brake: MT5, 4 Pistons, 203mm
• Rear Brake: MT5, 4 Pistons, 203mm
• Front Rotor: MDR-P 203mm, CentreLock
• Rear Rotor: MDR-P 203mm, CentreLock
• Brake Levers: MT5 HC-Lever

Wheels

• Wheelset: H 1900 Spline, 30mm, 15 x 110mm, CentreLock
• Rear Wheel: H 1900 Spline, 35mm, 12 x 148mm,CL, HG Single Speed
• Tyres: Kryptotal-Fr, Enduro Soft, Foldable Skin SL

Finishing Kit

• Handlebars: TheBar++ Dia. 31.8 Mm
• Handlebar Width: 780mm
• Grips: MTB Grip Set VLG-1751D2
• Stem: The Stem++ Diameter 31.8mm, Length: 35mm, A-Head
• Stem Length: 35mm
• Seatpost: A4H Dropper, Diameter 34.9mm, Travel: 125mm
• Saddle: Vivo 1216HRN
• Pedals: VPE-527 Alloy with Reflector

Electric Power

• Motor: E1.12 Motor Gearbox Unit
• Battery: InTube 800Wh
• Battery Charger Type: FIT Standard Charger 48V
• Display: FIT Master Node Display + Remote Pure
