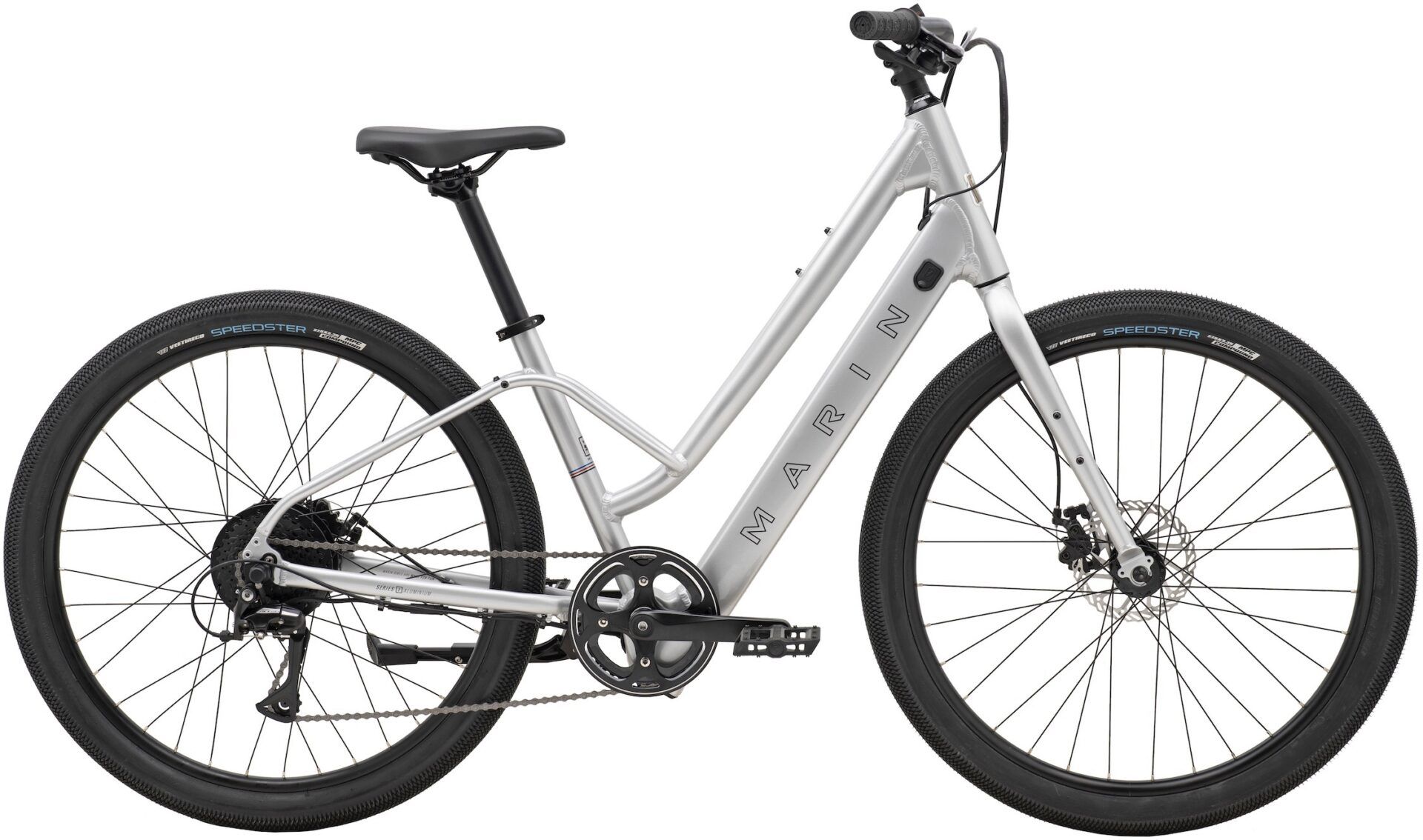

Marin Stinston E ST 2025 Electric Bike

The Stinson brings a new level of comfort and control to your ride. This model has a lightweight Series 1 aluminium frame with low standover, an ergonomic handlebar, plush saddle, and versatile, high-volume 27.5″ tyres with mixed tread for control on a variety of surfaces. Design features include our Comfort Control Geometry with upright seating and the ability to touch the ground with the forefoot, while maintaining proper saddle height for pedaling efficiency.

Specification

Frame and Forks

• Frame: Series 1 Comfort, E-Bike Specific, 6061 Aluminum, 27.5″ Wheels, Disc Specific, Low-Step Design, Comfort Control Geometry, Kickstand Mount, Fender And Rack Mounts
• Forks: Chromoly Steel, Straight Blade, Disc Specific, Fender And Rack Eyelets
• Headset: FSA, TH No.10P

Drivetrain

• Crankset: Alloy Crank, Steel 38 Tooth Chainring, Ring Guard
• Bottom Bracket: Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper
• Rear Derailleur: Shimano Acera, 8-Speed
• Cassette: SunRace 8-Speed Freewheel, 11-34 Tooth
• Chain: KMC Z8

Braking/Shifting

• Shifters: Shimano Altus 8-Speed RapidFire
• Front Brake: Tektro MDM280 Mechanical Disc, 160mm Rotor
• Rear Brake: Tektro MDM280 Mechanical Disc, 160mm Rotor
• Brake Levers: Alloy, Long Pull

Wheels

• Rims: Marin Aluminium Double Wall, Disc Specific
• Front Hub: Forged Aluminium Alloy, 32 Hole
• Rear Hub: Bafang 250 Watt Hub Motor, 40Nm, 36 Hole
• Spokes: 14 Gauge Stainless Steel
• Tyres: Vee Tyre Co. Speedster, 27.5 x 2.35″, Puncture Protection

Finishing Kit

• Handlebars: Marin Alloy, 25mm Rise, 18˚ Backsweep
• Grips: Marin County
• Stem: Marin Alloy
• Seatpost: Marin Alloy, 30.9mm
• Saddle: Marin Comfort
• Pedals: Nylon Platform

Electric Power

• Battery: Bafang 340Wh, 36V, In-Tube
• Controller: Handlebar Mount LCD Switch & Display
