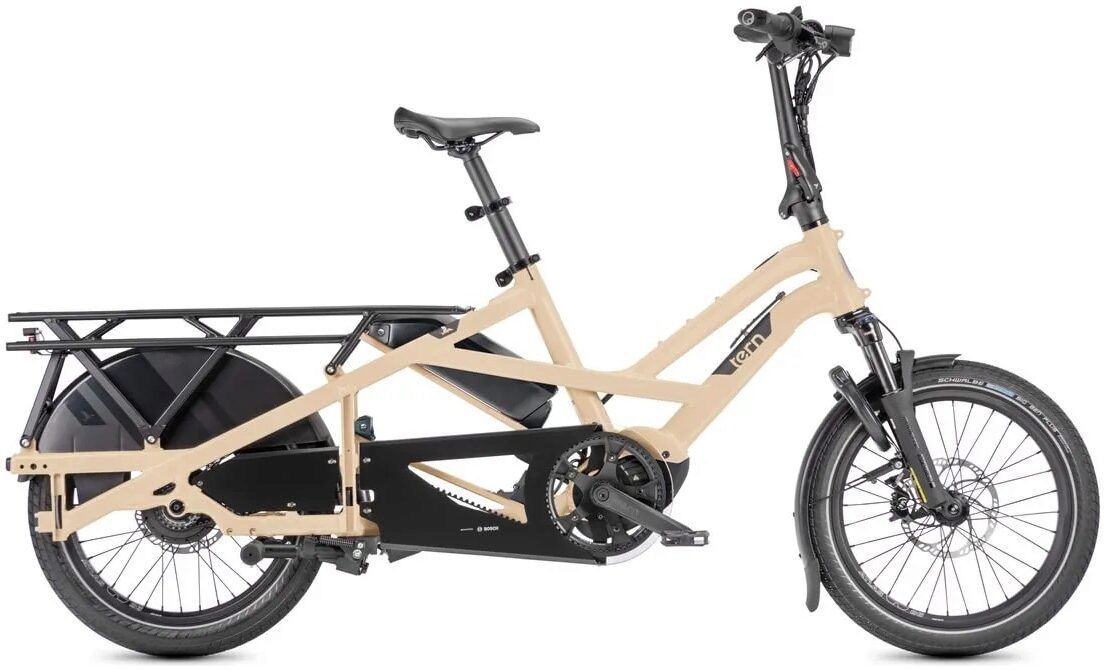

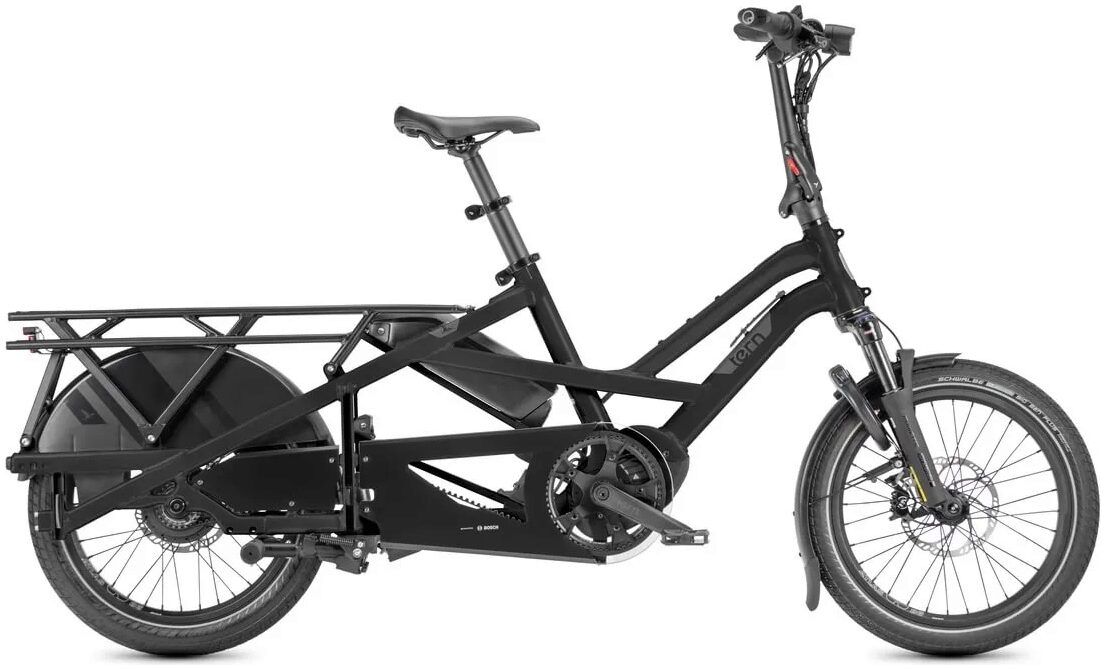

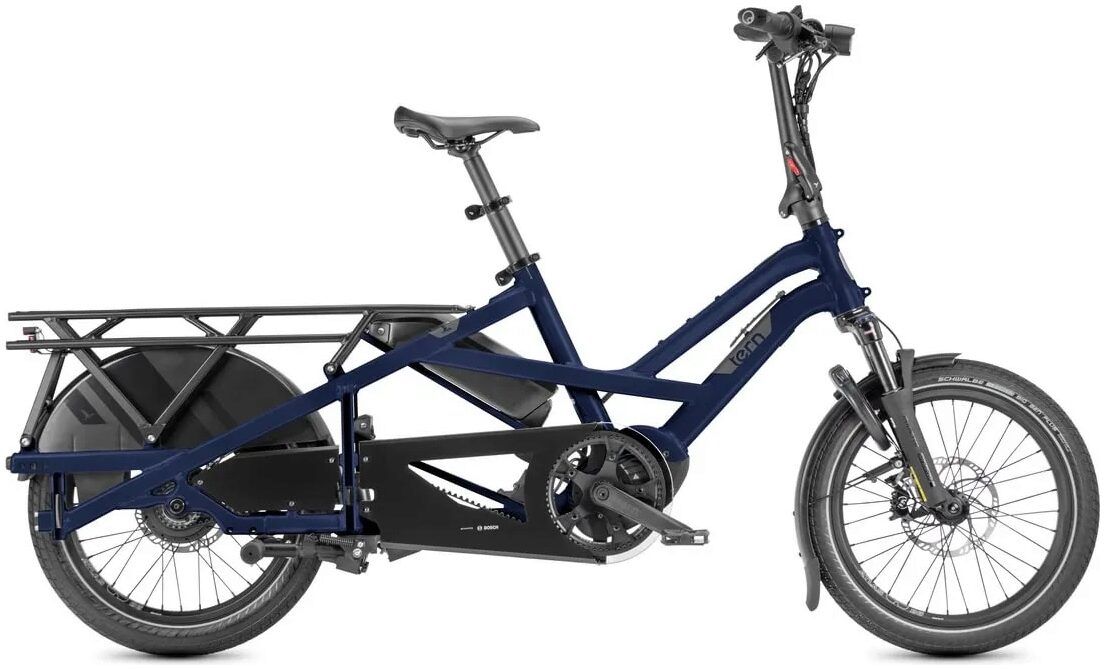

Tern GSD P00 Gen 3 Electric Cargo Bike

What makes it a P00?

• Bosch® Smart System with Purion 200 control unit enhances your riding experience with smart features like eBike lock, ride customization, navigation, and more!
• Add the optional ConnectModule to unlock advanced functions such as Smart Alarm and GPS tracking
• Dual-battery compatible, ready to power through heavy use and long distances of up to 196 km (122 mi)
• Silent, smooth, and low-maintenance Gates Belt Drive
• Enviolo Heavy Duty internally geared hub with 380% gear range and twist shifter, offering effortless shifting to tackle various terrains

GSD Highlights

• Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 210 kg (463 lb) with a rear rack load capacity of 100 kg (220 lb)
• Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and 400% support
• Magura® 4-piston hydraulic disc brakes deliver precise and responsive stopping power
• Robust, locking dual-leg kickstand with remote unlock and integrated foot extensions for maximum loading stability
• Easy-sharing cockpit adjusts without tools to fit riders 150 – 200 cm (4’11” – 6’7″) tall and weighing up to 130 kg (287 lb)
• UL 2849-certified e-bike system & third-party tested to meet German cargo bike standard DIN 79010 for superior safety and reliability

Specifications

Frame and Forks

• Frame: Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 210kg
• Fork: Suntour custom for Tern, 1.5″ tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 50 mm travel, EFBE approved: 210kg

Drivetrain

• Crankset: Tern GSD, Gates CDX CNC machined beltring
• Rear Derailleur: Shimano Deore Shadow+
• Cassette: Gates CDX, precision CNC machined cog
• Bottom Bracket: Motor integrated
• Chain: Gates Carbon Drive CDX belt

Braking/Shifting

• Brakes: Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
• Brake Levers: Magura MT5 e-stop, hydraulic, with brake light sensor
• Gear Shifters: Enviolo, Twist

Wheels

• Front Hub: Tern Atlas, Cooling Fins, Boost Thru-Axle, sealed cartridge bearings
• Rear Hub: Enviolo Heavy Duty, 380% continuously variable range, Boost
• Rims: Tern Atlas, ultra wide 36 mm, dual reinforced joint
• Front Tyre: Schwalbe Big Ben Plus, Green Guard puncture protection, Reflex
• Rear Tyre: Tern x Schwalbe Super Moto-X, Green Guard puncture protection, Reflex
• Spokes: Stainless steel

Finishing Kit

• Headset: Tern Flux Pro Taper by FSA, 1.5″, angular contact bearings, Physis integrated
• Handlebar: Tern Sweep, 6061-AL, Tern Andros adapted
• Stem: Tern Andros, adjustable, forged construction, patented technology
• Grips: Ergon
• Saddle: Tern GSD by Velo
• Seat Post: Tern VLT (Very Large Telescope) with Cane Creek suspension and LightAction levers
• Seat Post Clamp: Tern Collar
• Pedals: Urban with non-slip surface, sealed bearings

Extras

• Bell: Pitch Plus, brass
• Chainguard: Tern GSD, full chain cover
• Kickstand: Atlas Lockstand Gen 2, AutoLock w/ remote unlock, patented technology
• Front Light: Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
• Rear Light: LED w/ G-Sensed Brake Light
• Fenders: F: Aluminum R: GSD wheel guard
• Rack(s): Atlas G, 100 kg (220 lb) capacity

Electric Power

• Motor: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU)
• Battery: Bosch 545 PowerPack, Fast Swap, Dual Battery bays, optional 2 x 800 Wh max capacity
• Display: Bosch Purion 200, connectivity with Bosch eBike Flow IOS/Smartphone app
• Charger: 220V, 4A (EU)
