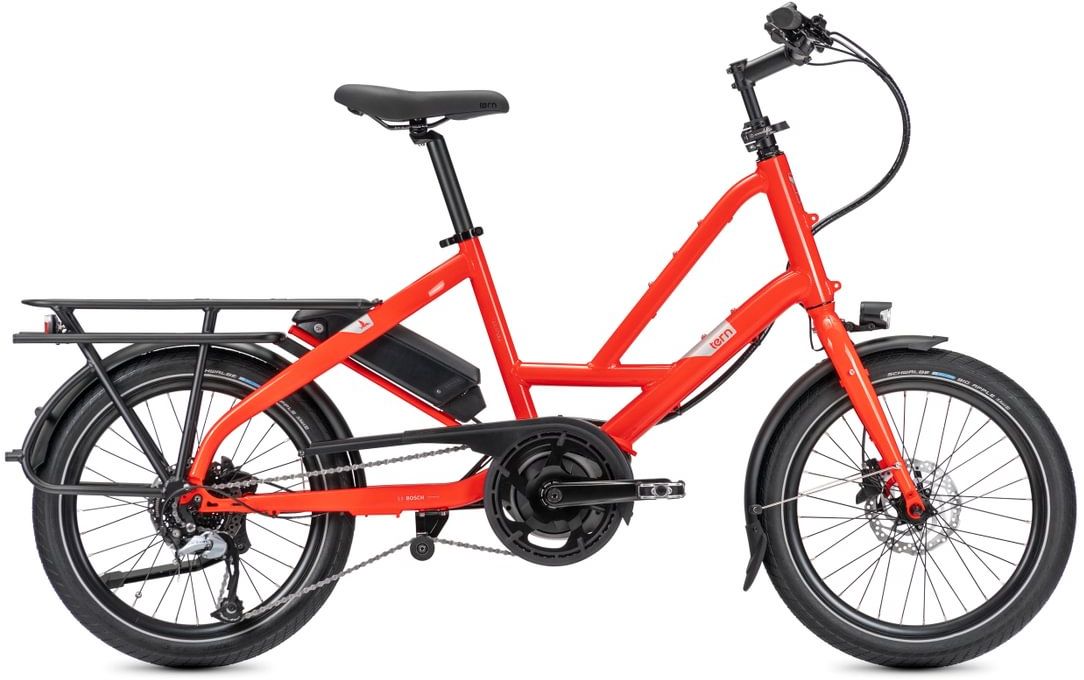

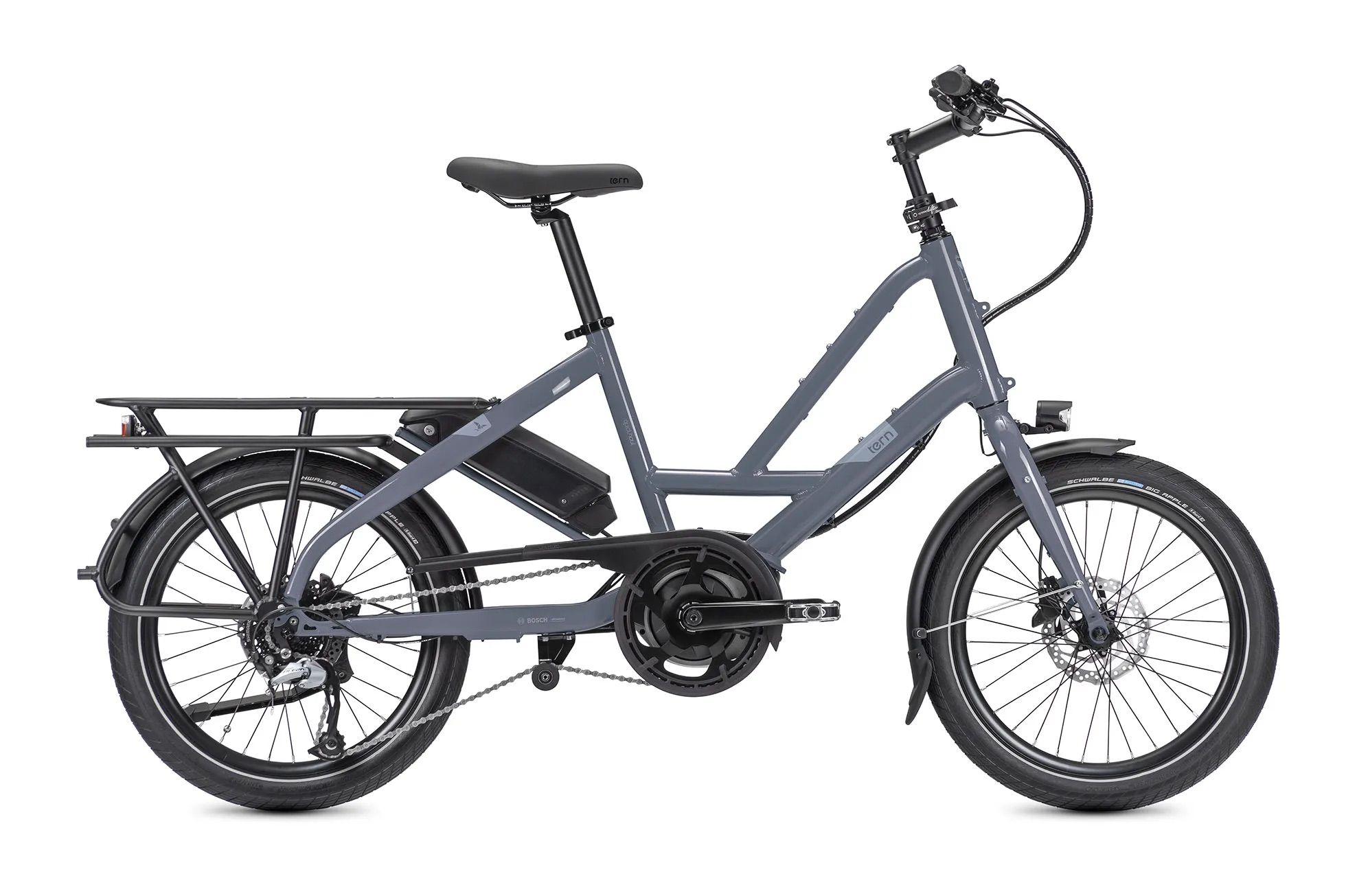

Tern Quick Haul D8 Electric Cargo Bike

What Makes it a D8?

• Bosch Active Line Plus motor provides up to 50 Nm of torque and 270% support
• 1 x 8-speed Shimano Altus groupset with trigger shifter

Quick Haul Highlights

• Cargo capacity: 50 kg on the rear rack, plus an additional 20 kg with optional front rack
• Fits riders 160 – 195 cm (5’3” – 6’5”), and also riders 145 – 180 cm (4’9” – 5’11”) when equipped with a shorter, 350 mm seatpost
• Lots of available kid- and cargo-carrying accessories—easily create your perfect setup
• Ultra-low 490 mm standover height makes (dis)mounting and waiting at stops easier
• Shimano hydraulic disc brakes for reliable stopping power—even when heavily loaded and riding fast
• Proven safe and reliable: frame and fork are EFBE-tested up to the 150 kg (331 lb) Maximum Gross Vehicle Weight

Specifications

Frame and Forks

• Frame: Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg
• Forks: Cargo, steel, EFBE approved: 150 kg

Drivetrain

• Crankset: Tern custom, forged 6061-AL crankarm
• Rear Derailleur: Shimano Altus Shadow
• Cassette: Shimano 11-34 Tooth, 8 Speed
• Chain: KMC for eBike, 8 Speed

Braking/Shifting

• Shifters: Shimano Altus, 1 x 8 Speed, trigger
• Front Brakes: Shimano, hydraulic disc
• Rear Brakes: Shimano, hydraulic disc
• Brake Levers: Shimano, hydraulic disc

Wheels

• Front Hub: Novatec, Thru-axle, sealed bearings
• Rear Hub: Shimano disc
• Spokes and Nipples: Stainless steel
• Rims: Kinetix Comp, for disc
• Tyres: Schwalbe Big Apple, 55-406, puncture protection, Reflex

Finishing Kit

• Handlebars: Low riser, 31.8, 6061-AL
• Stem: Speedlifter, 150 mm extension, 3D Forged stem, 31.8mm
• Seatpost: 31.6 mm, 6061-AL, micro-adjust clamp
• Saddle: Velo Comfort
• Pedals: Urban with non-slip surface

Electric Power

• Motor: Bosch Active Line Plus, 270% Assist, 50 Nm Torque
• Battery: Bosch PowerPack 400
• Display: Bosch Purion
• Range: 400 Wh: 54 – 105 km (33.6 – 65.2 mi)
• Charger: Compact Charger, 100-240V, 2A
