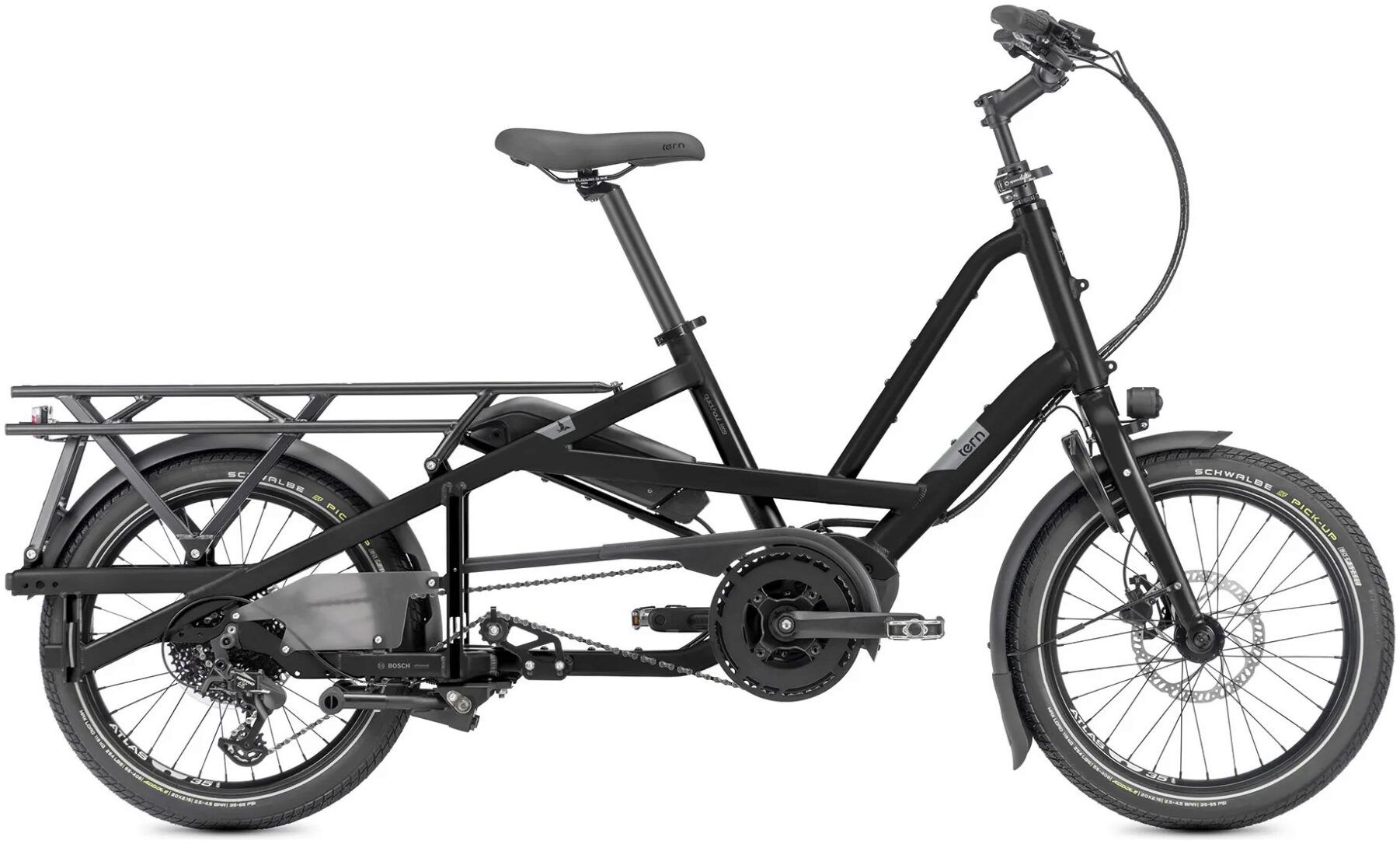

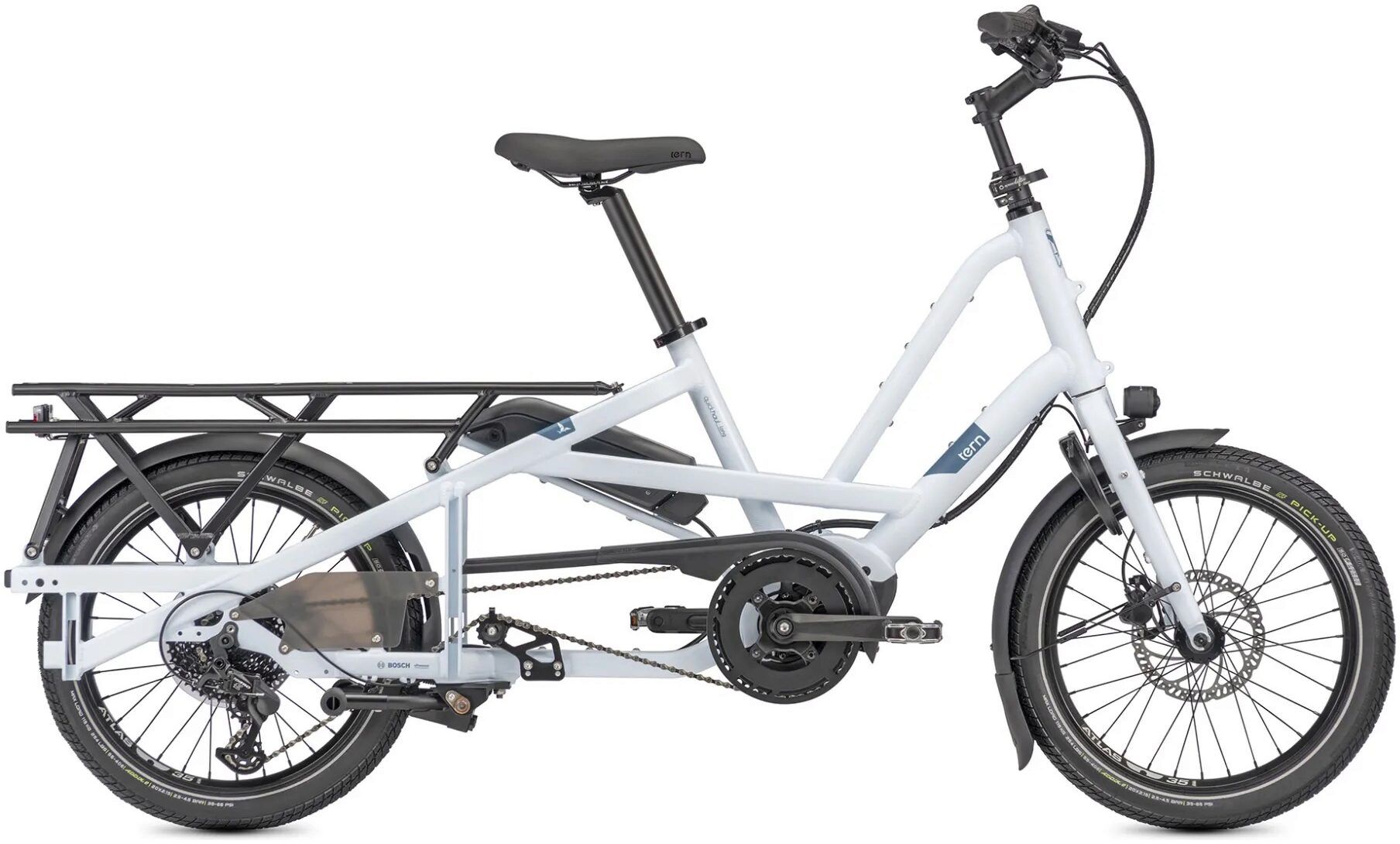

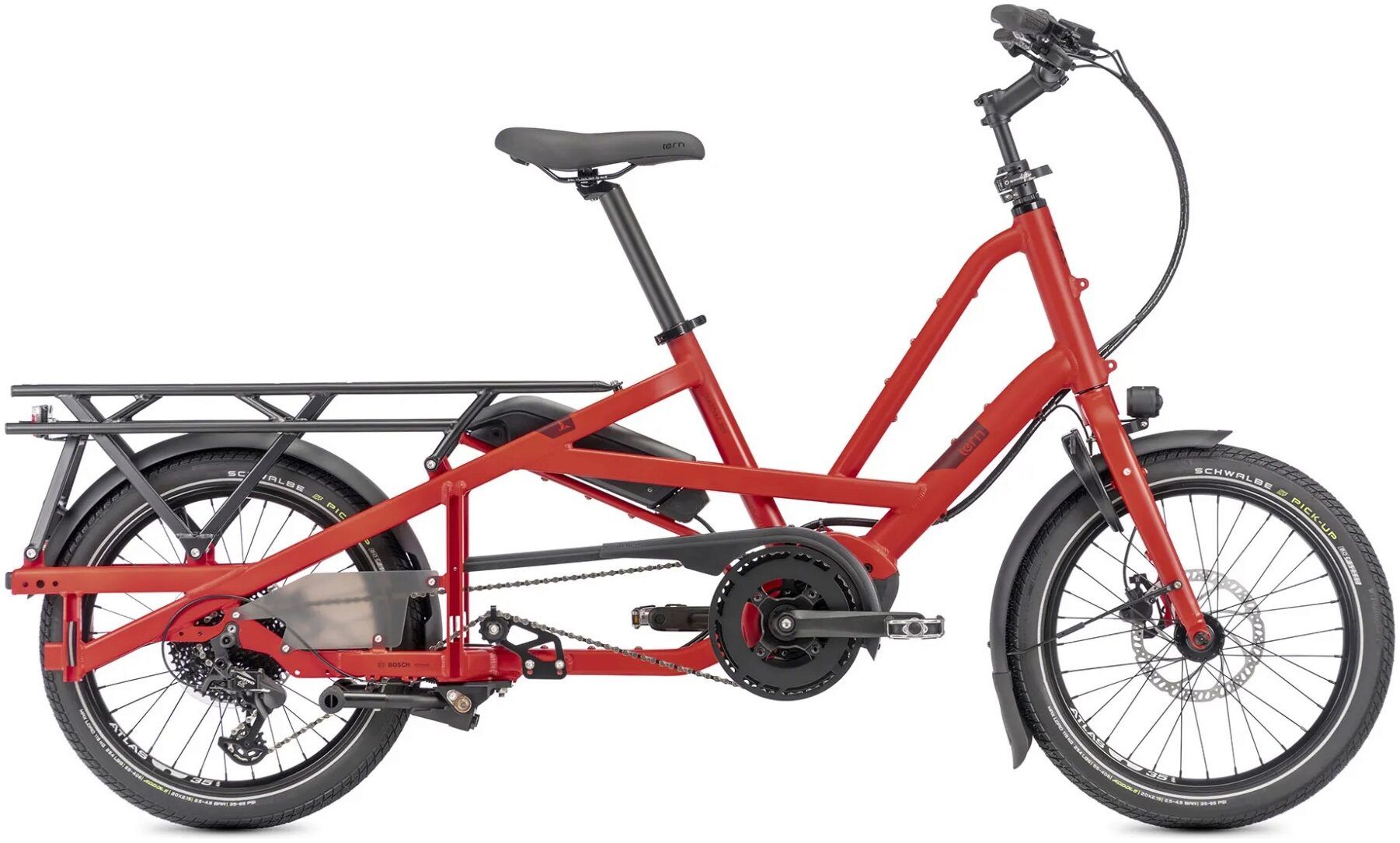

Tern Quick Haul Long D9 Performance Electric Cargo Bike

Quick Haul Long D9 Highlights

• Compact cargo bike designed to safely carry 2 kids, with plenty of heel clearance for the rider even if the kiddos require child seats
• Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and up to 400% support
• Easy-to-use, intuitive Bosch e-bike system helps you stay informed and in control on the road
• Custom 1 x 9-speed e-bike drivetrain with trigger shifter for faster, more precise shifting
• Built tough for hauling, rated to a maximum gross vehicle weight of 190 kg (419 lb) with a rear rack load capacity of 90 kg (198 lb)
• Robust, patented Atlas Kickstand keeps the bike steady for safe loading & unloading of cargo and passengers
• Create customized setups using our wide range of kid & cargo-carrying accessories
• Adjusts without tools to fit riders 155 – 190 cm (5’1″ – 6’3″), weighing up to 120 kg (265 lb)
• Third-party tested for safety & meets benchmark German cargo bike standard DIN 79010, with the frame and fork tested well beyond the requirements

Specifications

Frame and Forks

• Frame: Tern Quick Haul Long, Patented Design, 6061-AL, DIN 79010 certified: 190 kg (419 lb)
• Fork: Cargo, Aluminum alloy, DIN 79010 certified: 190 kg (419 lb)

Drivetrain

• Crankset: Tern custom, forged 6061-AL crankarm, anti-drop chainring
• Rear Derailleur: Tektro custom for Tern, 1 x 9 speed
• Cassette: Tektro 11-42 Tooth, 9 speed
• Bottom Bracket: Motor integrated
• Chain: KMC for eBike, 9 speed

Braking/Shifting

• Brakes: Tektro hydraulic disc
• Brake Levers: Tektro hydraulic disc
• Gear Shifters: Shimano Deore, 1 x 10 Speed

Wheels

• Front Hub: Disc, aluminum
• Rear Hub: 9 speed, disc, aluminum, Boost
• Rims: Tern Atlas H, cargo
• Front Tyre: Tern x Schwalbe Super Moto-X, Green Guard puncture protection, Reflex
• Rear Tyre: Tern x Schwalbe Super Moto-X, Green Guard puncture protection, Reflex
• Spokes: Stainless steel

Finishing Kit

• Headset: TH, cartridge bearings
• Handlebar: Low riser ergo, 31.8, 6061-AL
• Stem: Speedlifter, adjustable, 3D forged stem, 31.8mm
• Grips: Velo ergonomic, lock-on
• Saddle: Velo Comfort
• Seat Post: 34.9mm, 6061-AL, micro-adjust clamp
• Seat Post Clamp: Tern Collar
• Pedals: Urban with non-slip surface

Extras

• Bell: Aluminum
• Chainguard: SKS Chainblade
• Kickstand: Atlas Kickstand, for cargo
• Front Light: 90 lux, StVZO approved
• Rear Light: Herrmans
• Fenders: SplashGuard, stainless hardware
• Rack(s): Atlas L, 90 kg (198 lb) capacity

Electric Power

• Motor: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
• Battery: Bosch PowerPack 400
• Display: Bosch Purion, 4 mode selectable, walk assist
• Charger: 220V, 4A (EU)
