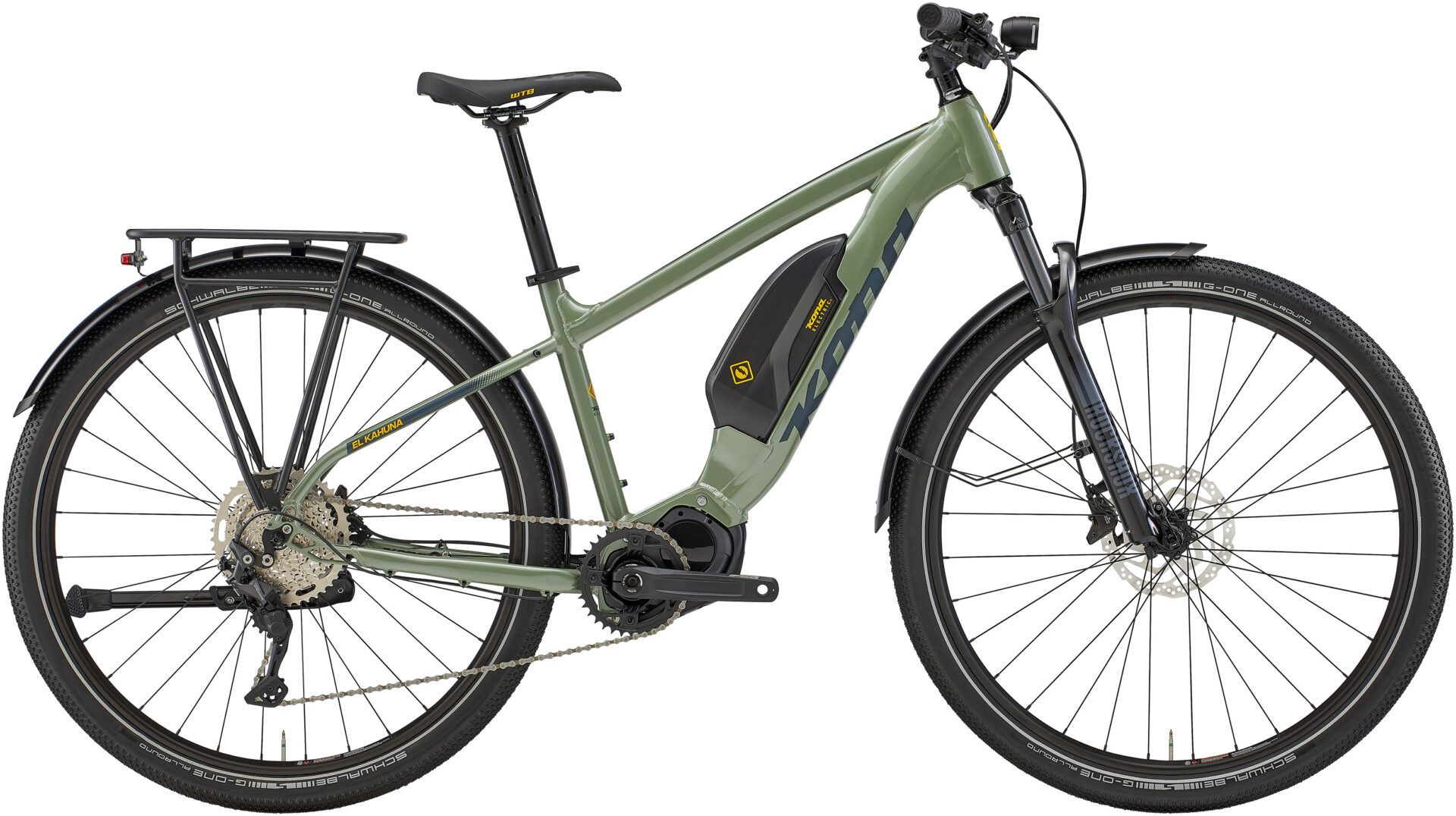

Kona El Kahuna SUV 2023 Electric Bike

For those that love the idea of carrying gear with the assistance of an E-MTB the El Kahuna SUV is the answer! Like its sibling, the El Kahuna, the SUV features a sturdy aluminum frame and 29″ wheels. The big differences are the addition of front and rear lights, and a rear rack which is integrated with a fender keeping you cleaner while you carry that camping gear up that big gravel road. A 100mm fork smooths out the bumps, and powerful disc brakes keep you in control while you rally around the campground’s gravel trails and singletrack.

Specifications

Frame and Forks

• Frame: Kona 6061 Aluminum Butted
• Forks: RockShox 35 Silver R Coil 100mm Tapered 110 Spacing
• Headset: FSA No.57BP

Drivetrain

• Crankset: FSA E-Bike
• Chainrings: 36 Tooth
• Rear Derailleur: Shimano Deore
• Cassette: Shimano Deore 11-46 Tooth 10 Speed
• Chain: Shimano HG54

Braking/Shifting

• Shifters: Shimano Deore
• Brakes: Shimano MT410
• Front Rotor: Shimano RT10 180mm (Centerlock)
• Rear Rotor: Shimano RT10 160mm (Centerlock)
• Brake Levers: Shimano MT4100

Wheels

• Rims: WTB ST I27 TCS 2.0
• Front Hub: Shimano 110 x 15mm
• Rear Hub: Shimano 135 x 10mm
• Spokes: Stainless 14 Gauge
• Front Tyre: Schwalbe G-One 29 x 2.25″
• Rear Tyre: Schwalbe G-One 29 x 2.25″

Finishing Kit

• Handlebars: Kona XC/BC Riser
• Grips: Kona Key Grip
• Stem: Kona XC
• Seatpost: Kona Thumb with Offset 31.6mm
• Seat Clamp: Kona Clamp
• Saddle: WTB Volt

Electric Power

• Motor: Shimano E6100 20mph
• Battery: Shimano 630Wh
• Battery Lock: Abus
• Charger: Shimano STEPS 2A
• Display: Shimano SC-E7000 Display
