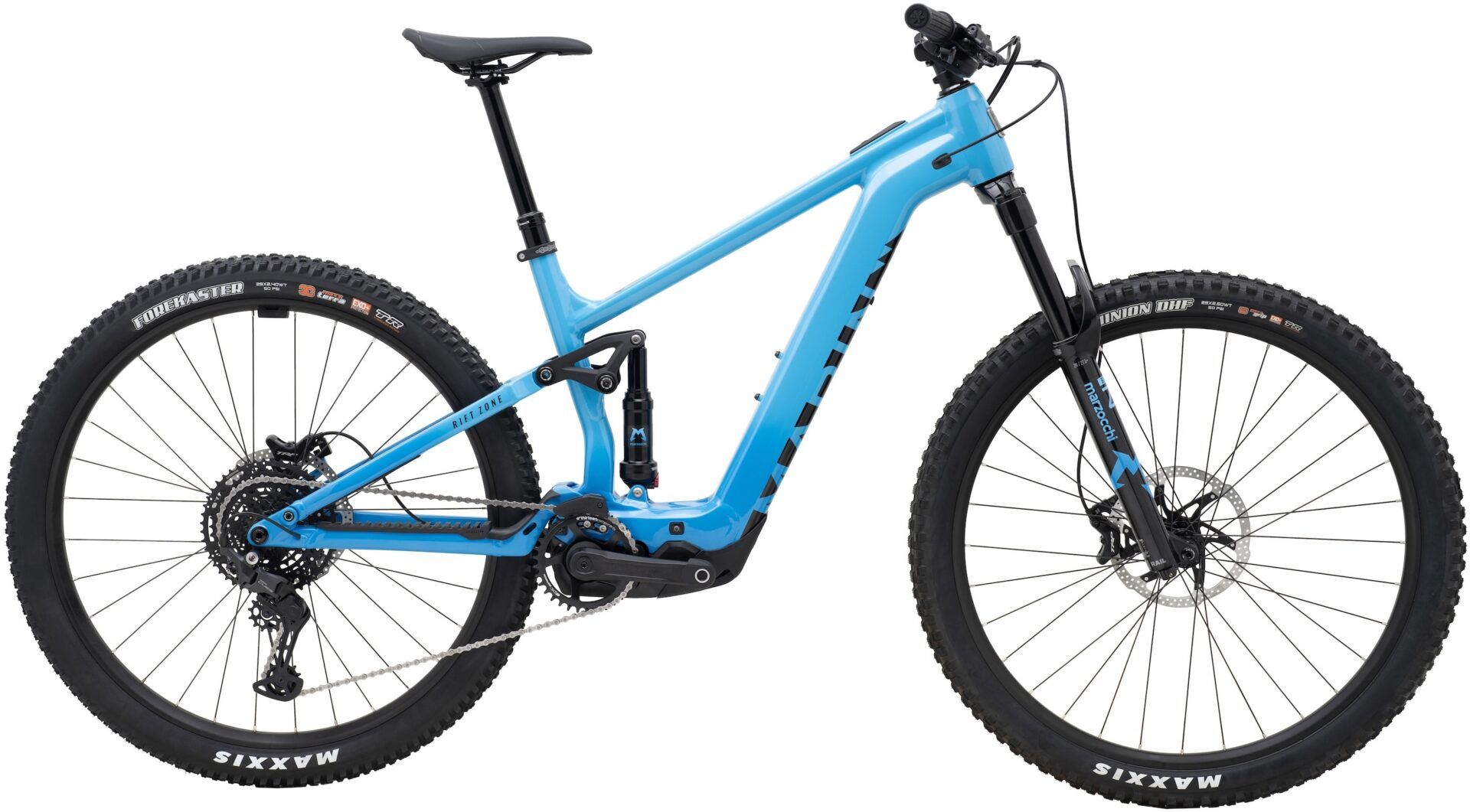

Marin Rift Zone EL 1 2026 Electric Bike

Marin’s all-new Rift Zone EL (“Electric Light”) trail eMTBs take everything you love about the Rift Zone formula and repurposes it into bikes that share the capability as the full-powered versions, but in lighter-weight packages. Made possible in part by Bosch’s new lightweight Performance Line SX drive unit and CompactTube internal battery, the Rift Zone EL models deliver a decidedly playful ride, with a power delivery so natural you might forget it’s an ebike. All of the benefits without the bulk, the Rift Zone EL is the perfect platform for those who don’t require the full range and power output of more traditional eMTBs.

Specification

Frame and Forks

• Frame: All New Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
• Fork: Marzocchi Bomber Z1 150mm Travel, 29, 110×15 Kabolt Thru Axle, 44mm Offset
• Rear Shock: Marzocchi Bomber Air Inline, Custom Tune, 210 x 55mm, 25 x M8 Upper & Lower Mount
• Headset: FSA No 57, Sealed Cartridge Bearings, 1 1/8″ x 1 1/2″

Drivetrain

• Crankset: E*Thirteen E*Spec Plus, 160mm Length, 34 Tooth
• Rear Derailleur: Shimano CUES RD-U6000 GS, 10-Speed
• Cassette: Shimano CS-LG300-10, 11-48 Tooth
• Chain: Shimano LG500

Braking/Shifting

• Shifters: Shimano CUES SL-U6000-10R, 10-Speed
• Front Brake: TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor
• Rear Brake: TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor
• Brake Levers: TRP Slate EVO, I-Spec EV Compatible

Wheels

• Rims: Marin Aluminium Double Wall, 29″ Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
• Front Hub: Shimano, 110 x 10 Thru Axle, 32H, CentreLock
• Rear Hub: Shimano FHTC500, 148 x 12 Thru Axle, Mircospline, 32H, CentreLock
• Spokes: 14 Gauge Black Stainless Steel
• Tyres: Front: Maxxis Minion DHF, 29 x 2.5″ MAXXGRIP, Tubeless Ready, EXO+, Rear: Maxxis Forecaster 29 x 2.4″, Tubeless Ready MAXX TERRA EXO+

Finishing Kit

• Handlebars: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
• Grips: Marin Grizzly Lock-On
• Stem: Marin 3D Forged Alloy, 35mm
• Seatpost: TranzX, YSI34 QL, Plastic 1x Remote, Size S 150mm Travel, Size M And L 170mm Travel, Size XL 200mm Travel, 34.9mm
• Saddle: Marin Speed Concep Tooth
• Pedals: Marin MTB Plastic

Electric Power

• Motor: Bosch Performance Line SX, 600W, 55Nm
• Battery: Bosch 400Wh Internal
• Display: Bosch BRC3100 Systems Controller
• Switch: Bosch BRC3300 Bluetooth Remote 22.2mm Clamp
• Max Range: 15-55 Miles/25-90km
