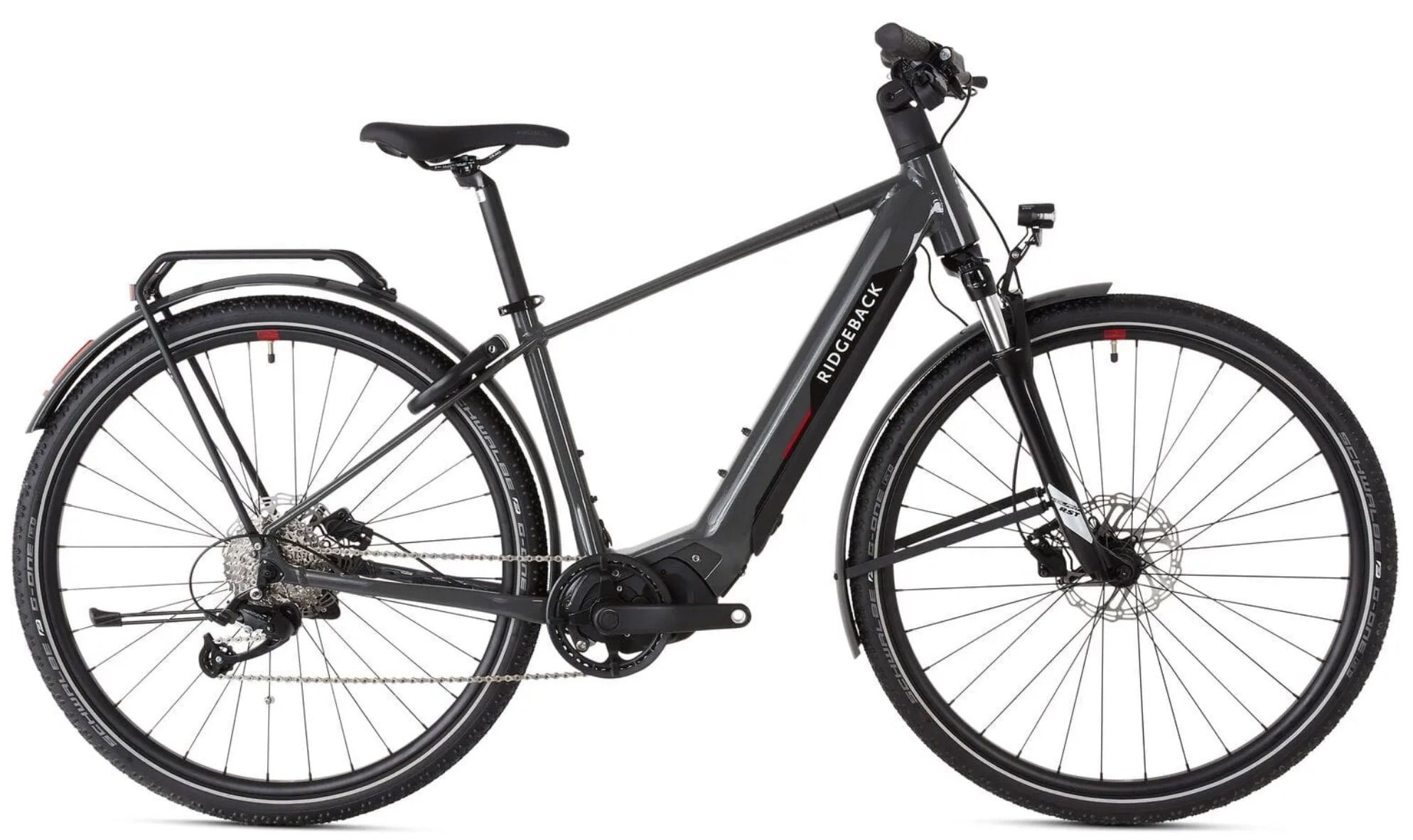

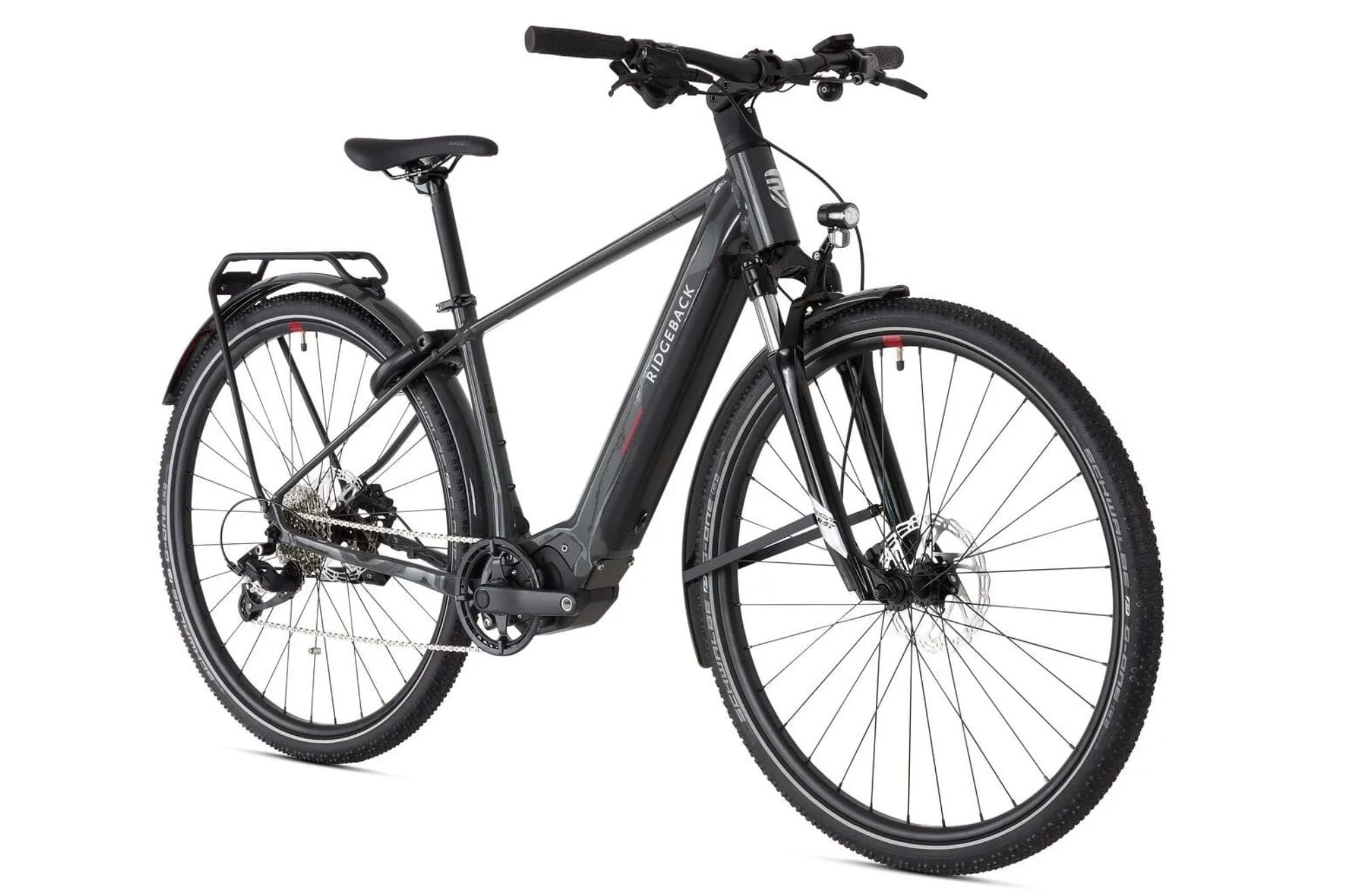

Ridgeback Advance 1 2023 Electric Bike

Advance by name advanced by nature.

Features

• Our new Ridgeback Advance 1 has everything you need to explore your local roads, trails, towpaths or wherever your curiosity takes you.

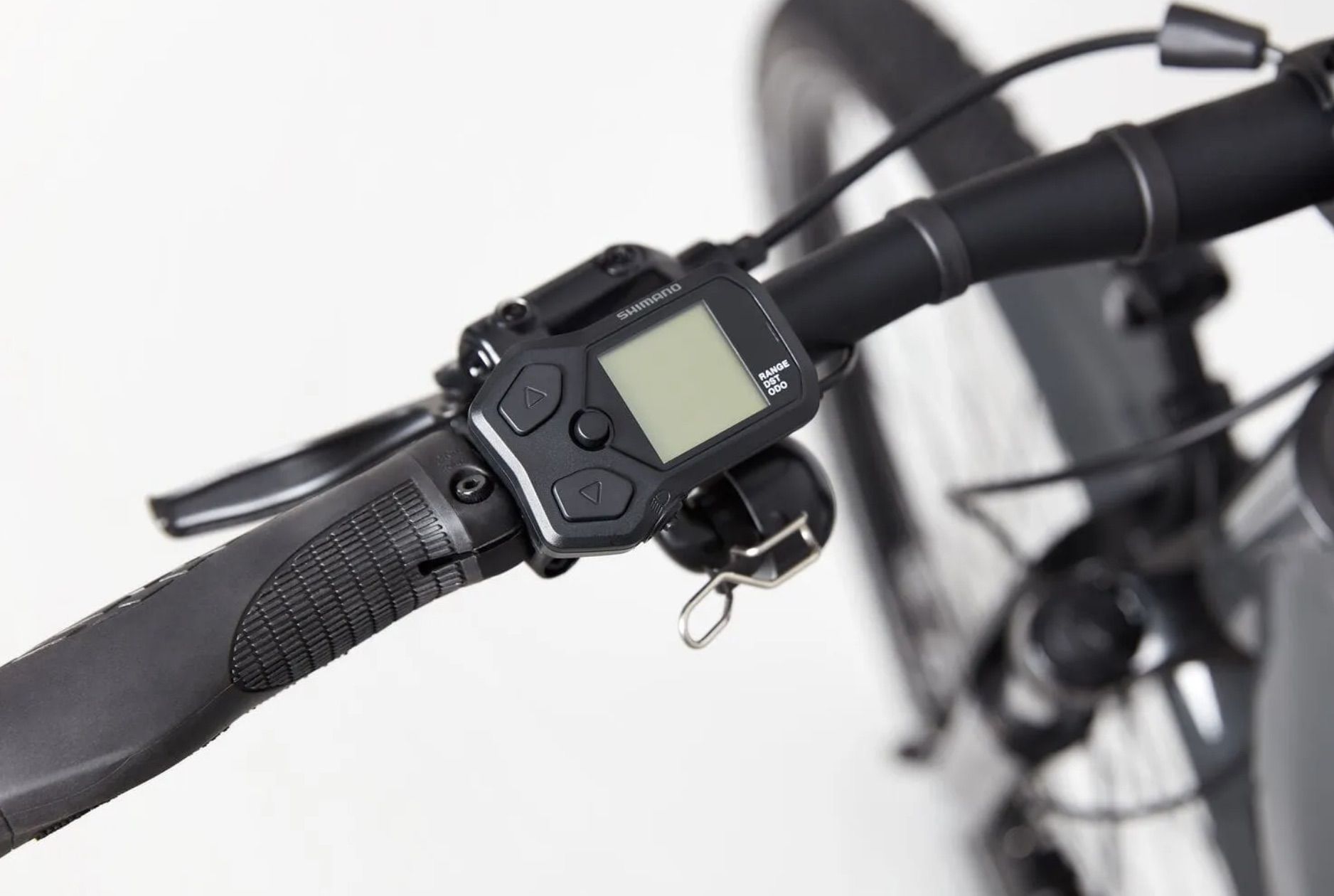

• Equipped with the Shimano STEPS E5000 pedal assist drive unit to make those hills disappear and the easy-to-use STEPS E5000 combined display and switch for simple and elegant control.
• A beautifully hidden yet powerful 504Wh battery will keep you going for up to 75 miles giving you the chance to really head out on your adventure.
• microSHIFT 9 speed gearing provides the right gear for any situation, and powerful hydraulic disc brakes produce plenty of stopping power.

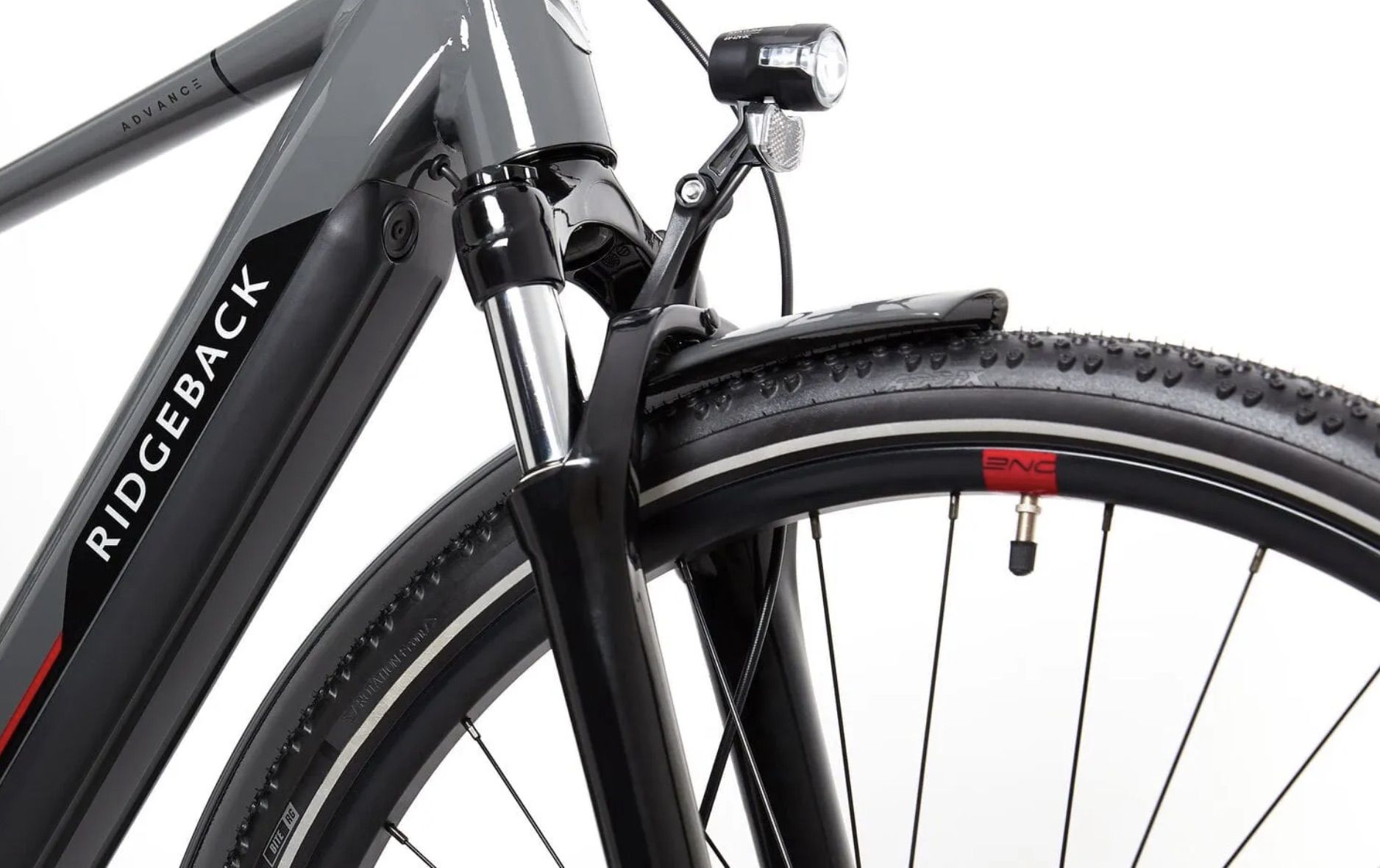

• Comfort is handled by the RST Volant suspension fork combined with 50mm wide Schwalbe G-One tyres, soaking up those bumps and providing extra grip when things get slippery.

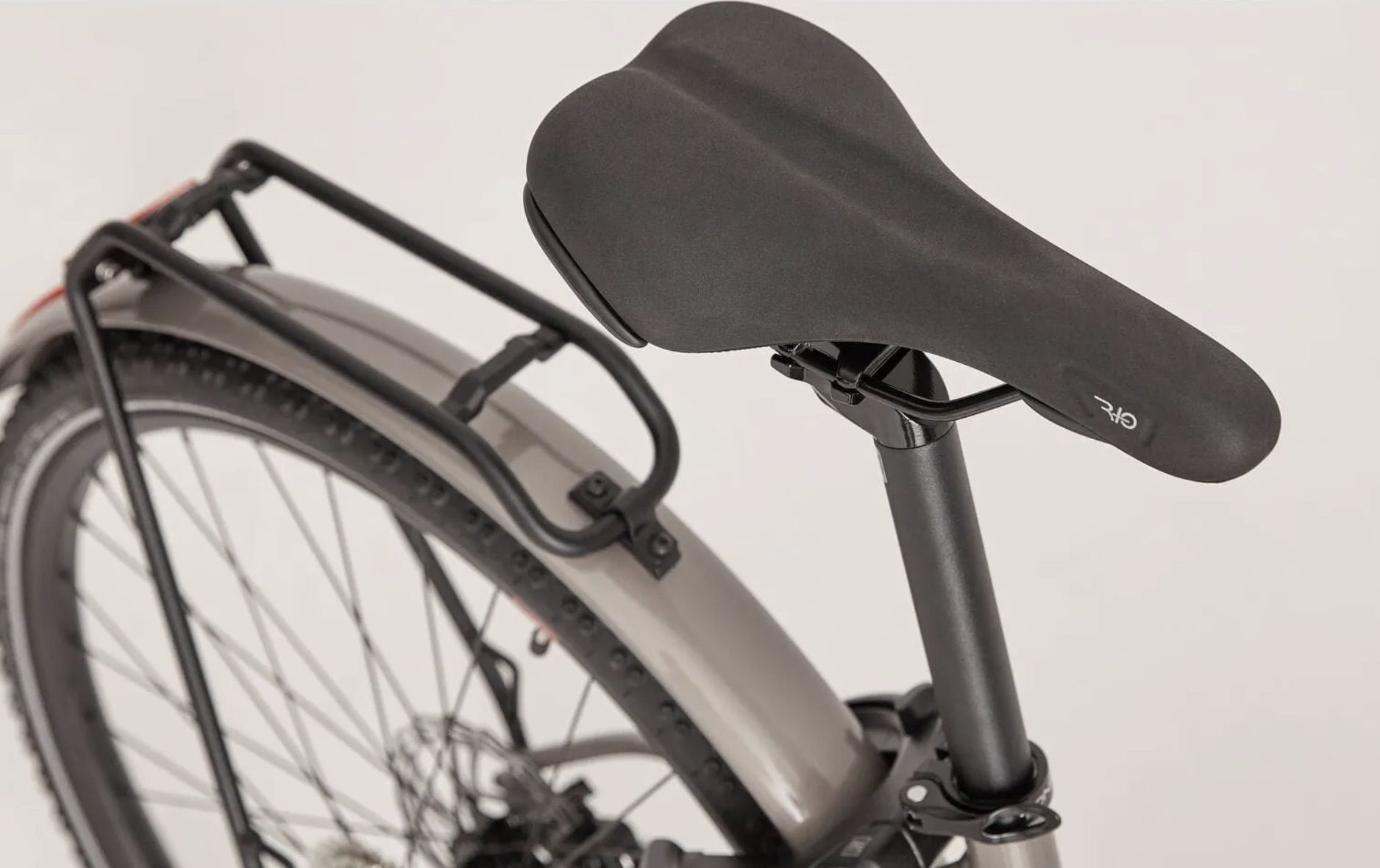

• The Advance 1 is ready for your adventure with fully integrated lights powered by the STEPS system, bespoke full metal mudguards and a pannier rack featuring the brilliant AtranVelo rack system.

Specifications

Frame and Forks

• Frame: Alloy
• Fork: RST Volant PLS-TNL 60mm

Drivetrain

• Rear Derailleur: microSHIFT Mezzo RD-M36L 9-Speed
• Cassette: microSHIFT CS-H092 11-36 9-Speed
• Chain Set: Shimano CRE50 38 Tooth 170mm
• Chain: KMC X9EPT

Braking/Shifting

• Brakes: Alhonga AHJ-OD5
• Brake Levers: Alhonga AHJ-OD5

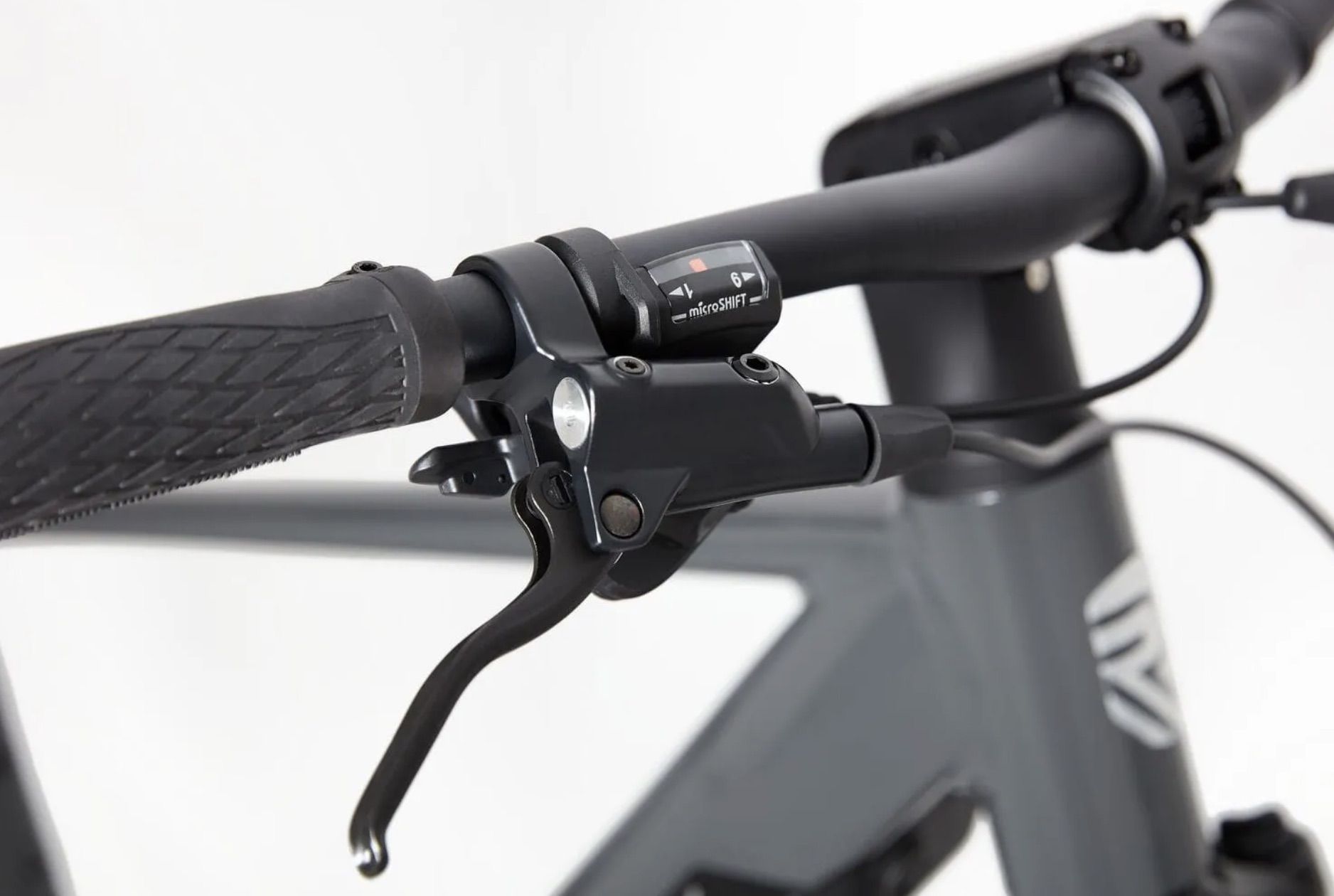

• Gear Shifters: microSHIFT Mezzo TS39 9-Speed

Wheels

• Front Hub: KT TC7 32 Hole
• Rear Hub: KT TC7 32 Hole
• Rims: STARS J26S 32 Hole
• Spokes: Steel 14 g
• Tyres: Schwalbe G-One Bite 700x50c

Finishing Kit

• Headset: ACROS AZX-585 ZS56/ZS56
• Handlebar: Alloy 680 x 20mm 15 degree Backsweep
• Stem: Integrated Adjustable Ahead
• Grips: Ridgeback
• Pedals: Resin Metro
• Seat Post: Alloy 30.9x350mm

Battery Power

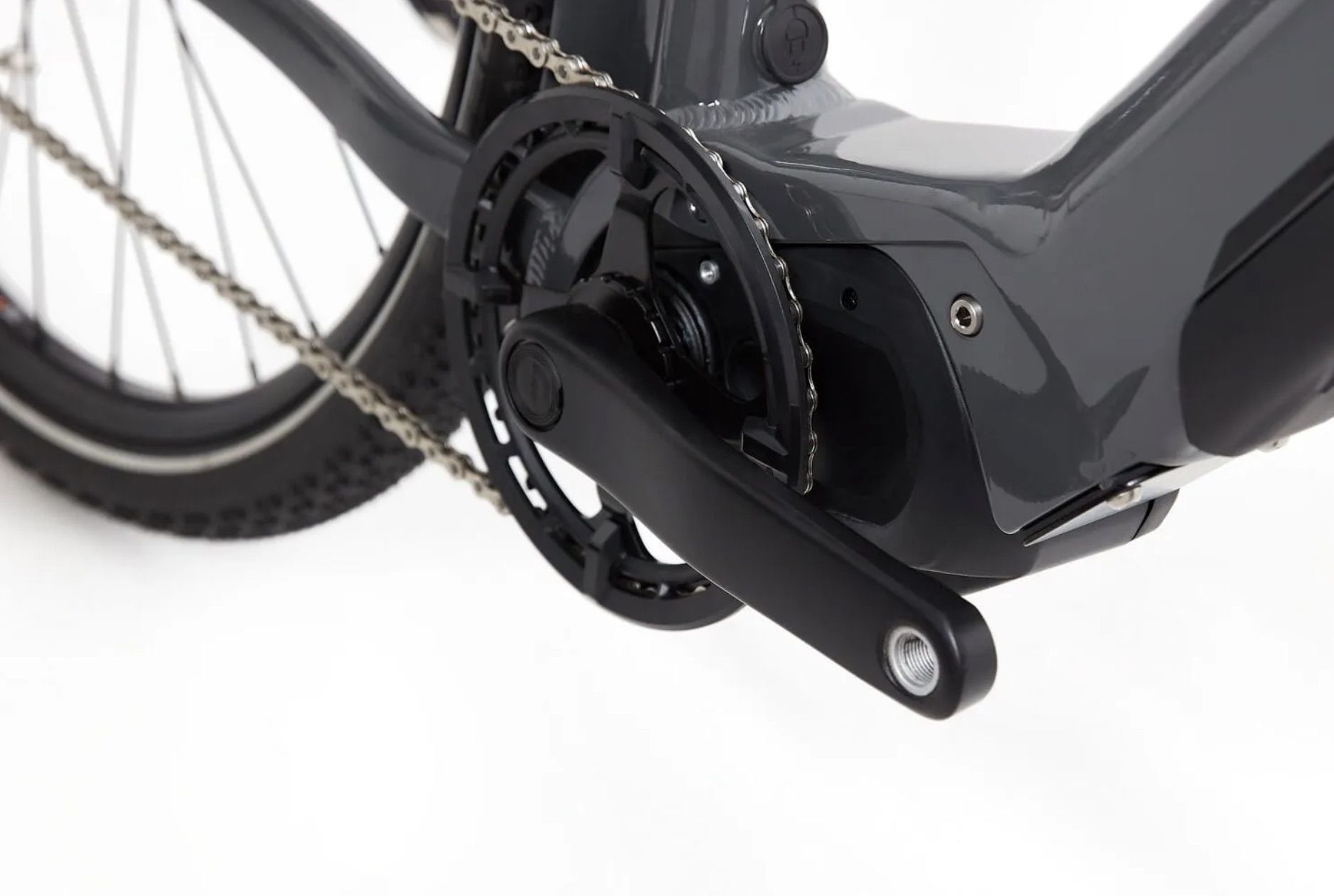

• Motor: Shimano STEPS DU-E5000 250w 40Nm
• Battery: DARFON INTERNAL 504wh
• Charger: DARFON 2AH Smartcharger
